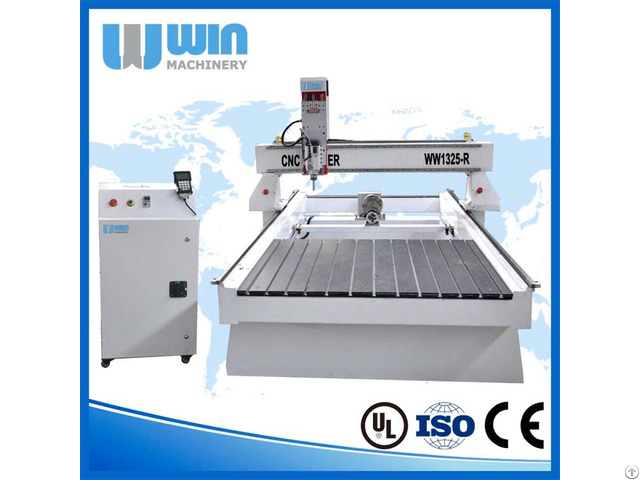

Ww1325r 3d Wood Cnc Router - China

Product Description

This Wood CNC Router is especially designed for engraving Rotary Grande with the panel length 2500mm T-slot table, and 400 mm diameter rotary extra.

The machine works with 400mm Z (height) of job size, and rotary diameter can be 400 mm, 2500 mm long cylinder.

We use stepper motor 3.0kW HSD spindle, Delta inverter and dust collector machine that is qualified for a job and the size of the timber, and large mass production.

With hard steel structure, the Wood CNC Router is suitable for the job of hardwood, such as cutting and engraving rosewood for furniture, interior decoration, and qualified for the mass production of furniture in the shape retention vacuum and dust collector.

Technical Details

1 X, Y, Z Traveling Positioning Accuracy ±0.03/300mm

2 X, Y, Z Repositioning Accuracy ±0.03mm

3 Table Surface T-slot (Option: Vacuum and T-slot Combined )

4 Frame Welded Structure

5 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings

6 Z Structure Hiwin Rail Linear Bearings and Ball Screw

7 Max.

Power Consumption (Without Spindle) 4.5Kw

8 Max.

Rapid Travel Rate 33000mm/min

9 Max.

Working Speed 25000mm/min

10 Spindle Power 3.0/4.5/6/7KW

11 Spindle Speed 0-18000RPM

12 Drive Motors Stepper System

13 Working Voltage AC380V/50/60Hz, 3PH (Option: 220V)

14 Command Language G Code

15 Operating System DSP System (Options: Ncstudio/Mach3 PC Software)

16 Computer Interface USB

17 Flash Memory 128M(U Disk)

18 Collet ER25

19 Software Compatibility Type3/UcancameV9 Software (Option: Artcam software)

Application

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Material

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Guarantee & After Sales Service

1 - The 3d Wood Cnc Router is guaranteed for 12 months.

2 - Technical support by phone, e-mail or MSN around the clock.

3 - Friendly English version manual and operation video CD disk.
