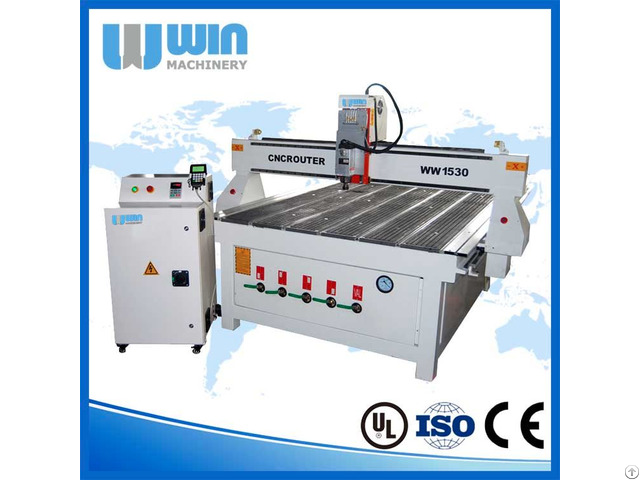

Ww1530 Cnc Cutting Machine - China

price: 6900.00 Dollar US$

Product Description
Entry-level three axis made from fully stress-relived structured steel for cutting and carving flat board. The Routers features - Precision ball scree drives - Rack and pinion transmission - Multi-zone vacuum plenum - World renown HIWIN bearings - Windows® based easy-to-learn and use G-Code Interface (multiple languages).

Specifications
1 X, Y, Z Working Area 1500x3000x200mm
2 Table Size 1750×3540mm
3 X, Y, Z Traveling Positioning Accuracy ±0.03/300mm
4 X, Y, Z Repositioning Accuracy ±0.03mm
5 Table Surface Vacuum and T-slot Combined (Option: T-slot Table)
6 Frame Welded Structure
7 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings
8 Z Structure Hiwin Rail Linear Bearings and Ball Screw
9 Max. Power Consumption (Without Spindle) 3.2Kw
10 Max. Rapid Travel Rate 33000mm/min
11 Max. Working Speed 25000mm/min
12 Spindle Power 3.0/4.5/6/7KW
13 Spindle Speed 0-18000RPM
14 Drive Motors Stepper System
15 Working Voltage AC380V/50/60Hz, 3PH (Option: 220V)
16 Command Language G Code
17 Operating System DSP System (Options: Ncstudio/Mach3 PC Software)
18 Computer Interface USB
19 Flash Memory 128M(U Disk)
20 Collet ER25
21 X, Y Resolution <0.01mm
22 Software Compatibility Type3/UcancameV9 Software (Option: Artcam software)
23 Running Environment Temperature 0 - 45 Centigrade
24 Relative Humidity 30% - 75%
25 Packing Size 3700X2100X2050mm
26 N.W. 1750KG
27 G.W. 1980KG
28 Optional Parts
Air Cooling Spindle or Water Cooling Spindle
Syntec Control System
Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
850W Yaskawa/800W Panasonic Servo Motors


Application
3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Material
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Guarantee & After Sales Service
1. The CNC Wood Carving Machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.

Contact Us
Miss Shining Guan
Email: shining @ 2winmachinery.com
Skype: shining.guan
WhatsApp: +86 13173016001
Mob.: +86 13173016001


Company Contact:


  • Phone: 8653185802660

  • Address: No. 170, Jiluo Lu, Tianqiao District,Jinan, Jinan, Shandong, China

  • Email: Email


Published date: July 1, 2016 -

  • Business Description: A professional manufacturer of CNC Routers, Laser Cutting Machines, Plasma Cutting Machines in China.
