China Famous Brand High Efficiency Small Hard Soft Candy Making Machine Production - China

price: contact company for price

1.The introduction of the whole line
The hard candy production line is consisted by the sugar cooking machine, cooling table, batch roller, rope sizer, forming machine, cooling slifter and packing machine can produce hard candy with different shape. Electrical integration control of the whole production line, easy to control the operation, large output, high efficiency, no waste of sugar, is the ideal equipment to produce the great hard candy.

2 .Main production flow chart
Sugar cooking →sugar syrup cooling →sugar kneading →sugar rolling→ rope sizer →forming hard candy → cooling→ automatic packing

3. The main introduction of the equipment
1)HTL-200L Electricity sugar cooking pot

The machine use electric heating. It has the characteristics of big heating area, high heating efficiency, heat well-distributed, short heating time and the temperature is easily to be controlled. The materials are stirred by scraping the bottom and sides of the pot, no stick on the pot, no stirring dead angle and the stirring is homogeneous. The outside and inside of the pot are formed of one body. It is made of standard SUS 304, accord with food standard health requirements and safe accessories are enough. The machine appearance is beautiful. It is easy to install and operate, safe and reliable.
It is widely used in food processing such as candy, pastry, lotus paste, bean paste, jam, meat paste, and preserved fruit. It is also used in daily chemicals and pharmaceutical industries.
Main technical
Pan inner diameter
Conduct oil
Stirring power
Total power
Stirring speed

2)Water circle cooling table

Main technical
Using water for cooling

Full stainless steel.304

3)batch roller

Candy batch roller is mainly used for prick roller circumgyrate in the same time so that extrude and press sugar from thick to thin. It’s the main equipment that making hard candy, cream candy and lollipop. The machine is characterized with unique features such as reasonable structure, superior performance, and pleasant appearance, easier operation and maintenance.

Main technical
Dimension(L*W*H)mm 2200×700×1400
Voltage (v) 380
Total power (kw) 0.75
The weight of the candy batch 35kg-50kg
Weight kg 500

4) rope sizer

This machine is the main equipment to produce hard candy and milk candy and has the advantages of reasonable structure, easier operation, and high pressure capacity and so on.

Main technical
Dimension(L*W*H)mm 1200*700*1300
Voltage(v) 380
Power (kw) 2
Weight (kg) 500

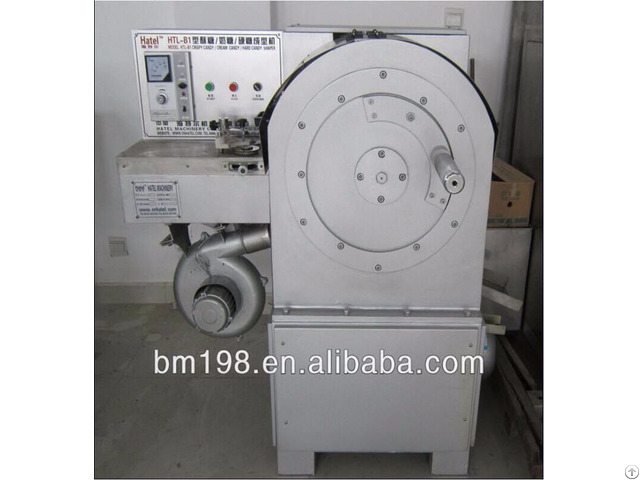

5)HTL-B1 hard candy forming machine

Total power:2.2kw

6)cooling sifter

Main technical
Voltage 380 V
Power 0.75 KW
Weight 160 kg
Dimension (L*W*H) 3000×500×400 mm

Company Contact:

  • Phone: +86 159 00908664

  • Address: Taidong Industrial Garden, Yancheng sity, China, Dongtai, Jiangsu, China

  • Email: Email

Published date: November 7, 2016 -

  • Business Description: candy making machine,candy packing machine,chocolate making machine, chocolate packing machine,candy making equipment,bakery equipment,snack food processing equipment,biscuit making machine
