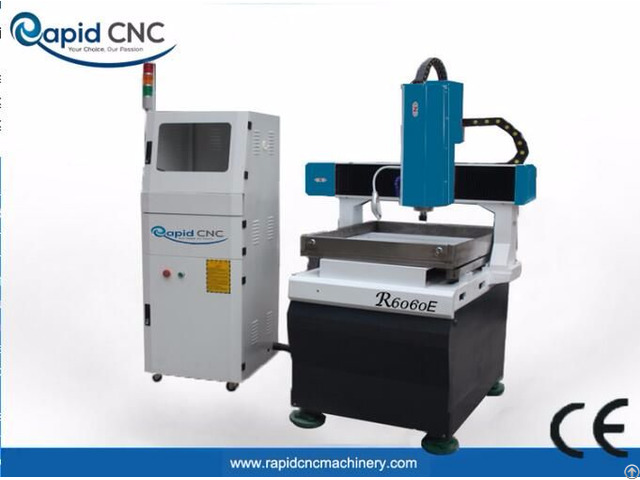

Cnc Router For Metal - China
price: 3850.00 Dollar US$
Technical parameters:
No
Description
Parameter
1
Travel (X/Y/Z)
600X600X200mm
2
Work piece height
Less than 300mm
3
Table type
T slot cast iron table with stainless tank
4
Machine Structure
Whole cast iron.
5
Table Surface
Hard PVC
6
Motor
Stepper/Servo
7
Transmission
Special purpose made lead screw
8
Spindle motor
3000W water cooled spindle
9
speed
300-10000 RPM/min
10
Precision
±0.01/300mm
11
Repeat positioning precision
<0.01mm
12
Max travel speed
20000mm/min
13
Engraving speed
1000-10000mm/min
14
Step driver
three axis independent driver
15
Driver power supply
24V/6 A
16
Engraving code
G-code /U00/mmg/plt
17
Software environment
window98/2000/XP
18
voltage
AC380/50HZ
19
Machine weight
1350kgs
20
Machine dimension
1450*1530*1780mm
Company Contact:
- Posted By: Jinan RapidCNC Machinery Co.,Ltd.
- Phone: 008653188984832
- Address: No.168-1, Huashan Industrial Area, jinan , shandong , China
- Email:
Published date: November 27, 2016
- Business Description: CNC Router machine
