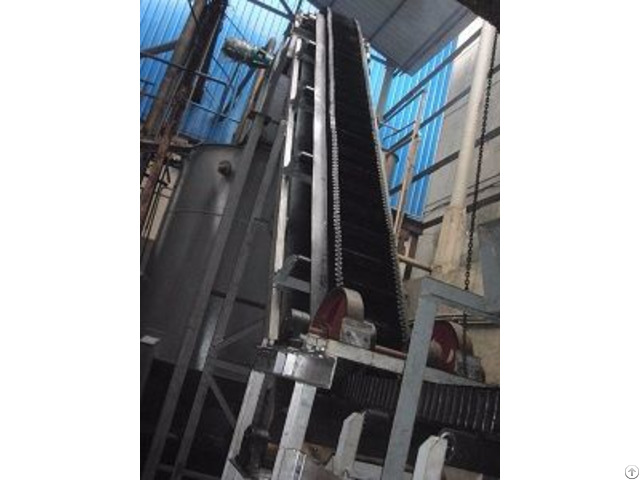

Djb Djs Corrugated Sidewall Belt Conveyor - China

price: contact company for price

Continuous transporting machine equipped with high quality conveyor belt with corrugated sidewall and horizontal baffle. Especially useful in applications involving the transportation of loose bulk materials. Comprises of the guide chute, conveyor belt, pulleys, conveyor rollers, pinched roller, tension device, pat idler, and driving unit. Distance and width of conveyor belt can be customized to clients’ preferences. Customizable special features such as anti-explosion, water proof, anti -corrosion, heat and cold resistance. Tension device such as screw or hammer block are installed to tighten the loosen conveyer belt.

Working Principle
Machine consists of three parts which are the horizontal loading section, inclined transporting section, and horizontal discharge section. At the loading section, impact conveyor roller is installed to withstand the contact force of materials being fed onto the conveyor belt through a hopper, chute, feeding belt or feeding pulley. Corrugated sidewall functions to convey materials and prevent materials from falling off from the edges of the conveying belt. Hot vulcanization provides greater adhesion by five times the initial adhesion between conveyor belt and sidewall. Materials are discharged at the head part.

Features and Advantages
 Greater adhesion waives the need to bolt the sidewall to the conveyor belt base and increase belt life.
 Large conveying capacity.
 Long conveying distance.
 No spillage.
 Durable and reliable.
 Can be set up horizontally or inclined with maximum inclination angle of 90°.
 Work well with materials of temperature ranging from -25°C to 140°C.
 Bulk density of materials can be carried is up to 2.5 t/m³.

Applications
Widely used in coal and wood chip fired power stations, metallurgy, agriculture, cement plant, underground mining, open pit mining, shaft conveying for tunnelling, steel industry, ship loading and unloading, silo feeding, waste recycling, soil purification, and water treatment.


Company Contact:


  • Phone: 86-373-5890799

  • Address: No. 289, Yellow River Road, Xinxiang City, Henan, China

  • Email: Email


Published date: August 11, 2016 -

  • Business Description: Designing and manufacturing YA/YK circular vibrating screen, PXZS gyratory vibrating screen, ZS linear vibrating screen, TD75/DT2A belt conveyor, DJB/DJS corrugated sidewall belt conveyor, TH/TD bucket elevator, TDG/THG high efficient bucket elevator, LS/GX screw conveyor, MS/MC scraper conveyor, DY portable belt conveyor, ZG vibrating feeder etc. for use throughout the processing and handling industries.
