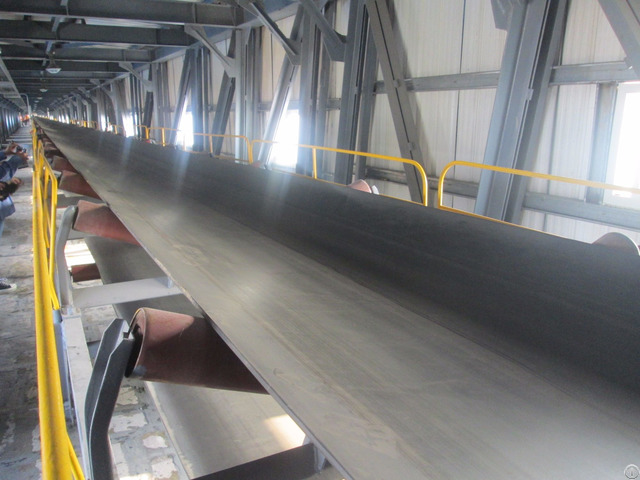

Dt Ii Fixed Belt Conveyor Machine - China

price: contact company for price

A mechanical machine applying friction force to continuously transport materials from one location to another. Especially useful in applications involving the transportation of heavy and bulky materials. Comprises of the rack, guide chute, conveyor belt, pulleys, conveyor rollers, impact conveyor rollers, returning conveyor rollers, pinched roller, tension device, pat idler, and driving unit. Distance and width of conveyor belt can be customized to clients’ preferences. Customizable special features such as anti-explosion, water proof, anti-corrosion, heat and cold resistance. Tension device such as screw or hammer block are installed to tighten the loosen conveyor belt.

Working Principle
Driven by two endpoint pulleys named drive pulley and bend pulley. The rubber belt is circulated by driving pulleys which is driven by reducer motor. Conveyor belt movement relies on the friction force between the drive pulley and conveyor belt. Impact conveyor rollers are installed underneath the conveyor belt at feeding chute to withstand the contact force of materials being fed. Materials are transported to the discharge end by the conveyor rollers that is set up at 20-35° with trough to keep the materials on conveyor belts.

Features and Advantages
 Simple and reasonable design with stable operation.
 Large conveying capacity.
 Long conveying distance.
 Durable and reliable.
 Low energy consumption compared to other types of conveyor.
 Can be set up horizontally or inclined with maximum inclination angle of 30°.
 Work well with materials of temperature ranging from -25°C to 40°C, and higher temperature up to 200°C if adopt the heat-resistant conveyor belt.
 Bulk density of materials can be carried is up to 2.5 t/m³.

Widely used in industries of chemical, coal, construction, hydropower, light, metallurgy, mining, port, petroleum, agriculture etc. to transport general and bulk material also large volume of resources agricultural materials.

Company Contact:

  • Phone: 86-373-5890799

  • Address: No. 289, Yellow River Road, Xinxiang City, Henan, China

  • Email: Email

Published date: August 11, 2016 -

  • Business Description: Designing and manufacturing YA/YK circular vibrating screen, PXZS gyratory vibrating screen, ZS linear vibrating screen, TD75/DT2A belt conveyor, DJB/DJS corrugated sidewall belt conveyor, TH/TD bucket elevator, TDG/THG high efficient bucket elevator, LS/GX screw conveyor, MS/MC scraper conveyor, DY portable belt conveyor, ZG vibrating feeder etc. for use throughout the processing and handling industries.
