Fc 70 High Speed Extrusion Machine - China

price: 40000.00 Dollar US$

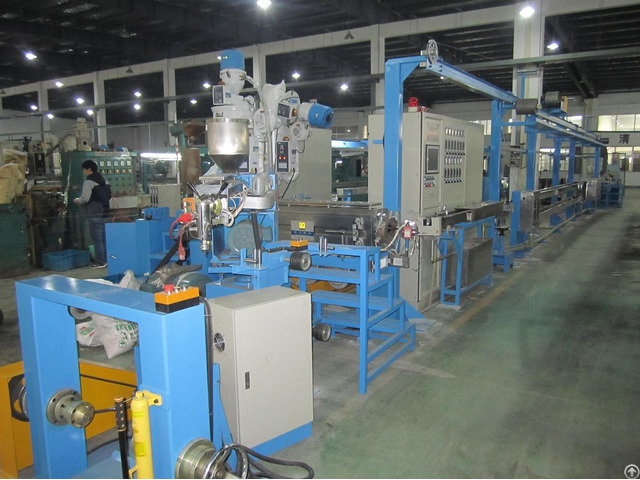

Series for Automobile wire high speed extruder line
Usage:
Apply for extruding PVC, PP, PE, SR-PVC and other plastic material for the automobile wire, insulated jacketed.
Device structure:
Lut barrel pay off machine, straighten, main machine, injection machine, control case, tank, double wheel capstan, accumulator, double shaft take up and other equipments. The choice equipments: copper wire pre-heater, printer, OD measuring instrument, spark tester and PLC control or IPC operation. Save, display and revise technology parameter, remote control.
Mechanical model FC-50+35 FC-60+35 FC-70+35
Pay off type 500-630 active pay off or lut barrel pay off
Screw Diameter 50 60 70
Screw L/D Ratio 25:1 25:1 25:1
Revoling speed of screw Max:110RPM Max: 100RPM Max:100RPM
Extrusion output 60 100 150
Power for main machine 15KW 18.5KW 22KW
Wire diameter 0.6-4.0 0.8-5.0 1.0-6.0
Max accumulator length(m) 200 220 220
Cooling device Double layer model U Monolayer/double layer model U Monolayer/double layer model U
Wire speed(m/min) 0-600 0-800 0-800
Capstan power 3.7KW 5.5KW 5.5KW
Take up type 1246 automatic coiling machine, the plum blossom falls barrel machine, shaft type


Company Contact:


  • Phone: +8615806265585

  • Address: No18.Leigongjing road,huaqiao town, kunshan city, Jiangsu, China

  • Email: Email


Published date: August 2, 2016 -

  • Business Description: Mainly produce wire bunching machine,wire extrusion machine,wire annealing tinning machine and so on for 15years.
