Grt High Efficient Microwave Dryer Red Chill Drying Oven - China

price: contact company for price

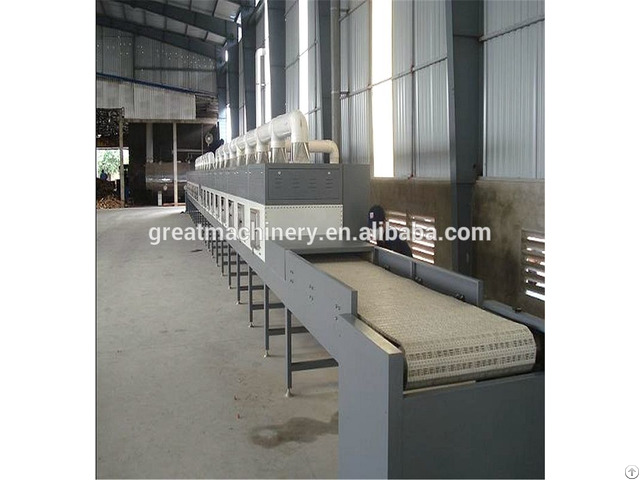

GRT high efficient microwave drying machine red chill dryer machine

Features of microwave drying machine/dryer :

1) Machine material: food-grade SUS304 stainless steel
2) Energy-saving more than 30%
3) High production efficiency
4) Safety and easy clear.
5) Improve working conditions: PLC touch screen control, automatically operation
6) The device control host environment temperature: seasonal normal temperature, environment relative humidity is less than 85RH.

7) Equipment body (microwave generating source part): Non corrosive gases, flammable, explosive gas around, environment temperature is 0-38 ℃environmental relative humidity is lower than 85RH

8) Site requirements(L*W*H): 10m*3m* 3m

9) It is suitable for the deep drying of many material with drying and sterilization, such as, bean, corn, rice, ground peanut, etc.

10) The equipment which need user provided : The pipeline from the fan to the outside, drainage fan, The standby power supply, power line, transformer. Cooling oil and etc.

The working principle of microwave dryer/drying machine :

microwave is issued by the microwave generator, formed a strong magnetic field in the microwave sterilization cavity. The water molecules in the material produced high speed reciprocating motion by the polarity change in the magnetic field, friction heat, and then for the purpose of sterilization.

The circuit control system of microwave dryer/drying machine :
1, Control modes:
PLC control, man-machine interface operation, high automation degree.
The console is arranged in the feeding end equipment, using PLC and image monitoring technology(monitoring points: intermediate operating cavity), realized the visualization of the drying process. Withpreventing microwave leakage detection device can realize the automatic alarm function.

2, Power control:
Packet control microwave system, achieved a high degree of automation and humanization ideaindustrial microwave equipment according to set program automatic adjustment output microwaveintensity;

3, Temperature control:
Using the real-time temperature measuring precision in the drying process, according to the settemperature requirements, automatic regulated microwave field strength. Configure automatic smokesensing device, overheat burning, automatic shutdown. realized the process requirements andequipment self protection function;

4, Variable frequency speed regulation:
The transmission speed variable frequency adjustable, adjusted the best effect by combining thematerial properties and microwave intensity. Implanted into the automation program, realized theautomatic operation. Not only can improve the product quality, but also can save the manpower cost.

Packaging & Shipping
1, Packaging Details: one Industrial tunnel dryer/microwave drying machine is fit for a 40GP.
2, Delivery Detail: One Industrial tunnel dryer/microwave drying machine needs 20 days, two dryers 30-40 days.

Company Contact:

  • Phone:  0086-371- 60206811

  • Address:  NO.1 Building,University Science Park, High-tech Development Zone, Zhengzhou City, Zhengzhou, Henan, China

  • Email: Email

Published date: August 26, 2016 -

  • Business Description: As a leading manufacturer and supplier of a variety of microwave drying equipment and heating solutions used in different applications and industries. We provide all of the resources needed to support industrial microwave and hot air circulation drying equipment and system. Our main products includes microwave vacuum dryer, hot air circulation drying oven, batch dryer, digital displayed constant temperature drying machine,etc.
    Our mission is to increase our customers' business productivity while assuring operator safety by helping users realize the maximum benefit from the quality of equipment, human resource, technology and general processes. This is accomplished in the design and manufacturing of equipment and support components at a level of quality unsurpassed in the industry.
