    • High Quality Erw Tube Mill Carbon Steel Pipe Machine - China

    price: 300.00 Dollar US$

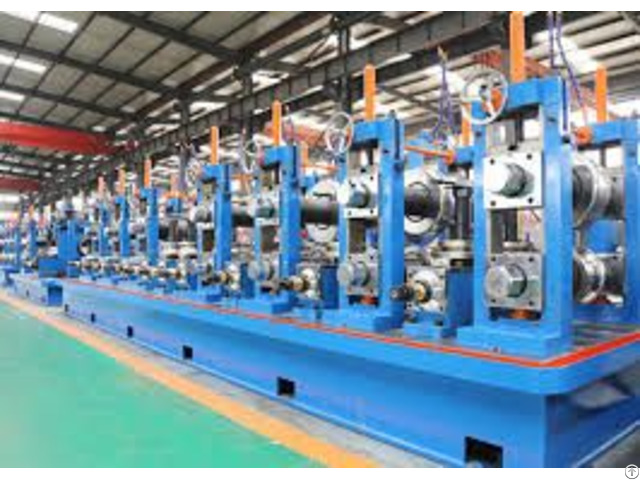

    High Quality Erw Tube Mill Carbon Steel Pipe Machine

    Products Photos Catalog Erw Tube Mill Carbon Photos Catalog

    The ERW (Electric Resistance Welding) tube mill & pipe mill is a series of machines that builds longitudinal weld seam tubes and pipes with steel strips of certain width.

    It starts by uncoil and flatten the slitted steel coils into steel strips.

    The flattened steel strips will then be inserted into the forming machine and the roller tolling in the machine will roll the strip to round pipe shape.

    The rolled strips will then be sent into the weld box where the tube is welded by a high frequency solid state welder.

    The welded tubes will be formed to expected shape or size in a sizing machine.

    Finally the tubes will be cut to length and bundled.

    1 - Function :

    Geit Group Co., Ltd. adopts advanced welding technology and offers dual welding arcs, increased speed, higher deposition, superior mechanical properties and quality.

    HG50, HG76 high frequency welded pipe machine is widely applied for producing tubes for heat exchanger, refrigerator, frame of car, bicycle, fitness equipment, furniture, cooling machine, petrol transmission, construction industry, etc.

    2 - Process flow:

    Feed - uncoil - straighten - shear and butt weld - loop storage - form - HF welder - IF anneal - cool - size -cut - output - end bevel - hydraulic test - collect .

    3 - Models and Specs:

    HG16: OD8-25mm, round0.3-1.2mm, square0.25-0.8mm

    HG25: OD8-38mm, round0.35-1.5mm, square0.35-1.0mm

    HG28: OD12-50mm, round0.5-1.8mm, square0.5-1.3mm

    HG32: OD13-50mm, round0.6-2.0mm, square0.6-1.5mm

    HG50: OD16-63.5mm, round0.7-2.5mm, square0.7-2.0mm

    HG76: OD32-76mm, round1.2-4mm, square1.2-3.5mm


    Company Contact:


    • Phone: +86-18330116125

    • Address: Room711,Culture building, Beijing Road, Yunhe District, Cangzhou City, Hebei,China, Cangzhou , China

    • Email: Email


    Published date: October 9, 2018

    • Business Description: GEIT Group is a highly recognized fabrication of Color coating equipment company that has been committed to quality and service since 1992 - It is specialized in design, manufacture and install of Color coating line of steel coil, Color coating line of aluminium coil, etc.
