High Speed Slitting Line - China

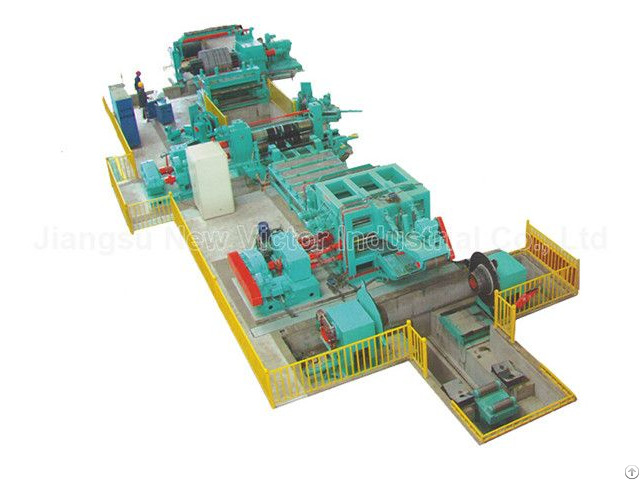

High Speed Slitting Line

This series of high speed slitting line is applicable to coils of various raw materials and sizes.

This series of high speed slitting line is applicable to coils of various raw materials and sizes.

It is used to slit the raw coils into required width after the process along with uncoiling, pre-leveling, end-shearing, slitting and recoiling.

This series of production line is featured in reasonable layout, automatic design, easy operation, high production efficiency and available for various materials, such as CR coil, galvanized coil, stainless coil, aluminum coil, all sorts of electroplated and coated coil.

High Speed Slitting Line consists of loading cart, un-coiler, slitter, scraper winder, end-shearer, tension controller and re-coiler, etc.

Meanwhile, between each equipment, there are setting loop bridge, pinch device and deviation corrector to keep the precision and stabilization.

Machinery model VZSK 0.3-2.0 x 1250 VZSK 0.3-2.0 x 1600 VZSK 0.5-3.0 x 1250 VZSK 0.5-3.0 x 1600

Coil width 600-1250mm 600-1600mm 600-1250mm 600-1600mm

Coil thickness 0.3-2.0mm 0.3-2.0mm 0.5-3.0mm 0.5-3.0mm

Coil weight 10T 15T 20T 30T

Coil I.

D Ф508mm Ф508mm Ф508mm, Ф610mm Ф508mm, Ф610mm

Recoil I.

D Ф508mm Ф508mm Ф508mm Ф610mm

Line speed 10-120m/min 10-120m/min 10-120m/min 10-120m/min

Slitting precision ±0.1mm ±0.1mm ±0.15mm ±0.15mm

Quantity of slits 2-20 slits 2-20 slits 2-15 slits 2-15 slits
