Waste Plastic Extruder - China

Waste plastic extruder

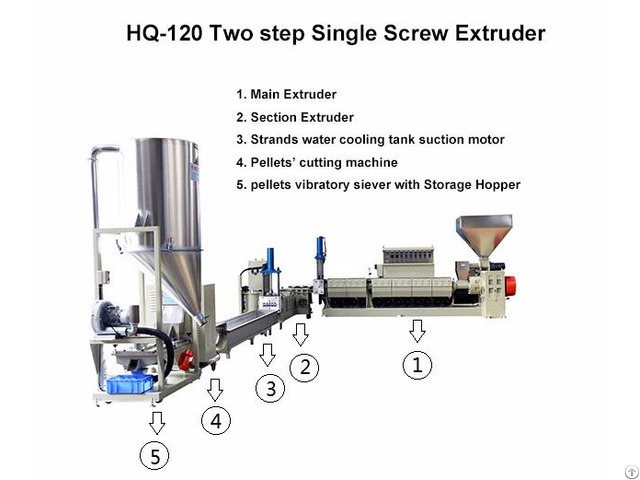

Model: HQ-120T Application (Two step Single-screw extruder) For all kinds of plastic scrap, ABS, PC, PA, PE, PP, or any others waste plastic material.

Especially for the dirty material for make pellets.

Waste plastic extruder

Main Extruder (HQ-120) 1 - Screw: Screw dia.

Ø120㎜, L/D: 32 2 - Material: SACM-1, Chrome-plated or SCM-4 bimetallic 3 - P.I.D.

thermo controller: 7 zones 4 - Gear oil cooling filter system: 1 group 5 - Barrel air cooling：1/4HP×12 sets ( auto start) 6 - Screen changer: Hydraulic, 4KW(260mm, two filter ) machine non stop change screen mesh.

7 - Main Motor: 110KW, VF-variable frequency inverter driven 8 - Machine size(mm): 4920*2400*2300 Section Extruder(HQ-130) 1 - Screw: Screw dia.

Ø130㎜, L/D: 8 2 - Material: SACM-1, Chrome-plated or SCM-4 bimetallic 3 - P.I.D.

thermo controller: 4 zones 4 - Screen changer: Hydraulic, 5 - Section motor (AC): 30KW VF 8 - Machine size(mm): 2750*1500*1800 Strands water cooling tank with suction motor 1 - Material: stainless steel 2 - Sucking motor: 2.2 KW 3 - Machine size(mm): 5000*450*300 Pellets Cutting Machine (HQ-1000C) 1 - Motor: 7.5 KW VF 2 - Stationary knife: Tungsten steel 3 - Rotary cutter: Tungsten steel or SKD-11, 28 blades 4 - Stationary knife: Tungsten steel 5 - Machine Weight: 500KG 6 - Machine size(mm): 960*870*1350 Pellets Vibratory siever with Storage hopper (HQ-1000V) 1 - Vibration motor: 1/4 HP*2 2 - Feeding motor: 3 KW 3 - Material: #304 stainless steel, 3 layer 4 - Filter dia: top￠6.5㎜, down￠2㎜*20L 5 - Mix capacity: 500 KG Option Machine Adjustable Speed Feeding Hopper (HQ-110A) 1 - Material: stainless steel 2 - Screw dis: ￠94 3 - Speed reducing ratio: 40: 1 4 - Reducer motor： 1.5 KW, VF inverter driven 5 - Hopper capacity： 100-650 KG/H 6 - Machine size(mm): 730 x 730 x 1050
