Coating Thickness Measurement Minitest650 - Korea

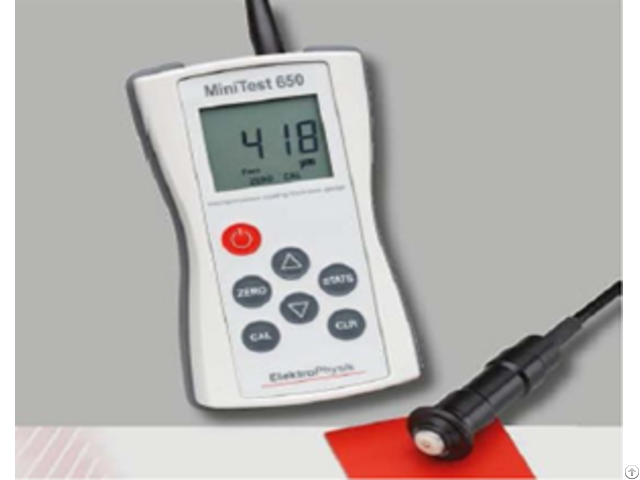

◆ Coating Thickness Measurement MINITEST 650

This measuring instrument is widely used, particularly for general purpose.

Measured values and statistics can be printed out by means of a portable printer(purchased separately)

** Usage : Quick and accurate nondestructive coating thickness measurement

** Features - Practically small size

- Built-in function of statistical analysis function

- An improved keypad mold

- Improved operating system for accurate measurement

- Coating iron and metal with all kinds of nonmagnetic materials such as paint enamel, chromium, zinc, etc

- Improving the super hard materials of the probe

◆ Technical Data [Part No.

MINITEST 650]

- Measuring Range : TYPEF(Ferrous Metal) : 0~3, 000㎛/120mils, TYPEN(Nonferrous Metal), FN(Common use) : 0~2, 000㎛/80mils

- Measuring Accuracy : +-2㎛(0.08mils) or +-2%

-Min.

Curvature Radius : Convex 5mm / 0.2", Concave 25mm / 1"

- Min.

Area for Measurement : 20mm / 0.8"

- Min.

Base of Thickness : 0.5mm / 20mils(F), 50㎛ / 2mils(N)

- Display : 4 digits(11mm / 0.44")

- Measuring Unit : Selectable ㎛ - mils

- Calibration : Standard, 1Point, 2Point

- Statistic : x, s, n(Max 9999), Min, Max

- Interface : USB

- Battery : 3 Micro AAA Battery(More than 10, 000 Measurements)

- Dimension(LXWXH) : Body 70X122X32mm, Probe 15dia.

X62mm

- Temperature : Body 0℃~50℃, Probe -10℃~70℃

-
