Electronical Airless Pump Rx280 - Korea

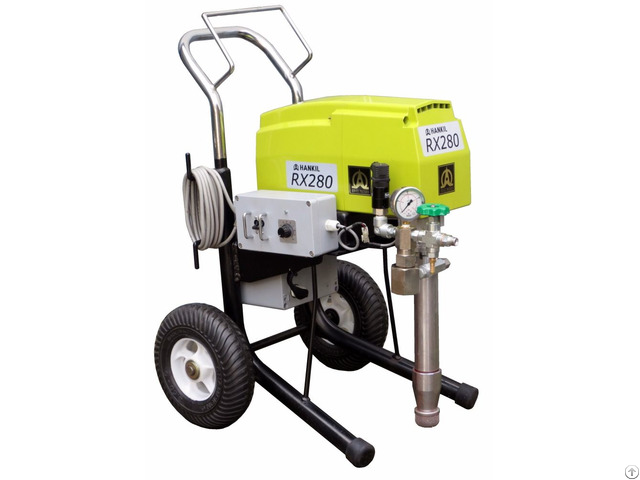

◆ Electronical Fire-proof Airless Paint Spraying Equipment RX-280

Equipped with BLDC motor with cylinder pump for high viscosity fire-proof paint

- High-powered pumping application from BLDC motor and control mode available

- High viscosity paint spraying available through cylinder type pump

- Longer operation time available with enhanced cooling through aluminum housing technology and reduce gear motor - Uniformity of coating through high motor capacity with surge-tank

- Stable spraying pressure preventing motor overload through BLDC DRIVER with pressure control module

- Detachable lower part of the pump for maintenance and repair purpose

- Hard chromium plated and nickel plated parts

- Minimized mechanical vibration with duralumin cylinder

- Application : Water-based paint, Zinc, Metal structure, Putty, Bontile, Epoxy, Fire-proof paint

◆ Technical Data [Part No.

RX-280]

- Max.

Delivery : 2.3L/min.

- Max.

Fluid Pressure : 3300psi

- Max.

Nozzle Size : 0.033"

- Motor Capacity : 2000W(2.7hp)

- Motor Specification : Brushless DC

- Power Source : AC 220V 60Hz

- Dimension(LXWXH) : 880X670X670mm

- Working Pressure : 220 bar
