Pfp Passive Fire Protection Airless Pump - Korea

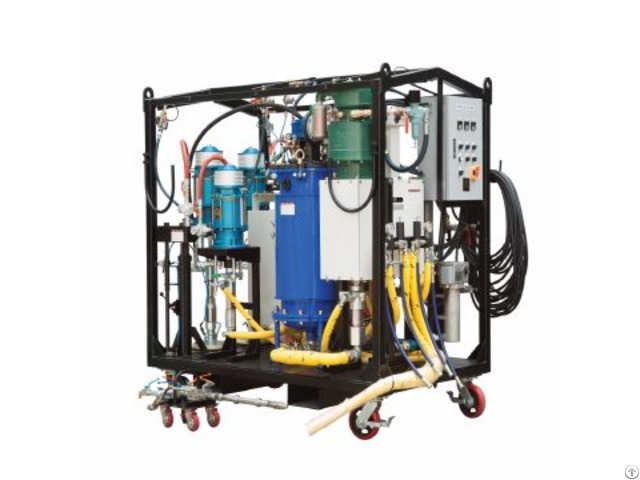

◆ High-Performance Dual Component Airless Spraying Equipment HK-PFP-2000 - No need for organic solvents

- Heatable depending on the conditions of a main material and a hardener

- Adjustable depending on the dilution ratio of a main material and a hardener

-1: 1 to 3: 1 when applied displacement pump are a same size

- Only used for fire-proof paint(CHARTEK7)

◆ Technical Data [Part No.

HK-PFP-2000]

- Pressure Ratio : 53: 1

- Ratio Range : 1.5: 1~4.5: 1

- Max.

Delivery : 16.2L/min.

- Max.

Cycle : 50cpm

- Output per Cycle : 365cc

- Operating Air Pressure : 7kgf/cm²

- Max.

Discharge Pressure : 372kgf/cm²

- Dimension(LXWXH) : 210X315X216cm

- Weight : 1, 890kg

- Noise : 80dB

- Air Motor Effective Diameter(Main) : 321mm

- Air Motor Effective : 203mm

- Air Motor Stroke : 120mm
