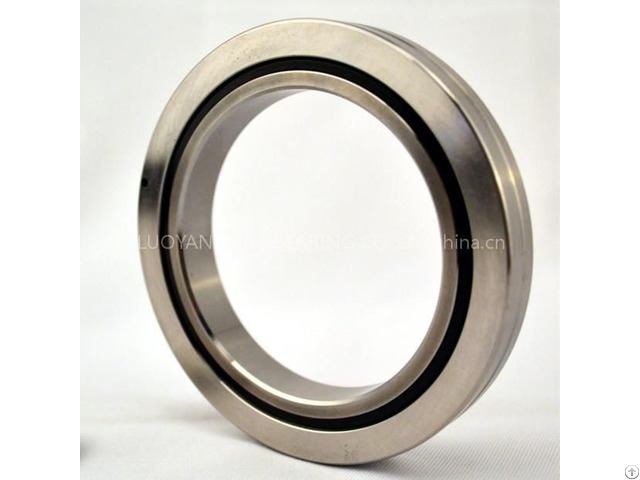

Nrxt8013dd Crossed Roller Bearing For Precision Turntable - China

price: 180.00 Dollar US$

NRXT8013DD|NRXT8013E crossed roller bearing

d:80mm
D:110mm
B:13mm
Cr: 20.5kN
Cor: 32kN
Mass:0.38kg


RIGIA Bearing specialized in producing NRXT8013DD crossed roller bearing. NRXT series bearing is a kind of thin section bearings, has the feature of light weight, high rigidity and high precision. NRXT crossed roller bearings' outer ring is split while inner ring is integrated, so it's suitable for applications where high running accuracy of the inner ring is required.

Applications
Industrial Robotic arm, indexing mechanisms, Precision Turntable, NC rotary table
Rotation part of Machine tools
Inspection instrument, Medical equipment
Aviation equipment, Military radar etc

To learn more about our company or get the Installation Instructions of NRXT8013DD crossed roller bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample are available upon request.


Company Contact:


  • Phone: +86-379-64850388

  • Address: B1209, Wanguoyinzuo, Anhui Road, Luoyang, Henan, China

  • Email: Email


Published date: November 11, 2016 -

  • Business Description: Luoyang BRS Bearing Co., Ltd is located in Chinese national famous bearing base - Luoyang, where
    bearings have been mass-produced since 1956. BRS specialized in producing and selling slewing bearings,tapered roller bearing,cylindrical roller bearings,spherical roller bearings,precision bearings,angular
    contact ball bearings,thrust bearings,deep groove ball bearing, YRT bearings,etc.All kinds of bearings of the inner diameter Φ100mm-Φ7500mm can be manufactured.

    The company owns a powerful technical team, and established a series of strict quality control management. Based on the decades of experience in this industry and professional knowledge of international procurement, BRS is able to supply high quality products and service with reasonable price.

    RIGIA is a bearing brand of Luoyang BRS Bearing Co.,Ltd, it originates from "Rigidity Industry Automation
    Bearing". Committing to the rapid development of industrial automation, BRS Bearing Company provides
    complete solutions to meet various customers' requirements on bearing rotary precision, rigidity, and
    structure.
