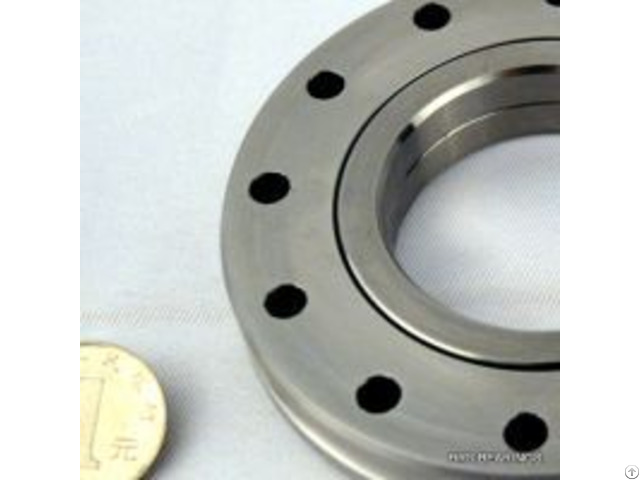

Xv50 Crossed Roller Slewing Bearing High Precision Rigidity - China

Slewing rings have high load carring capacity, a versatile range of applications and are highly cost-effective.

Due to their design, a single bearing can reliably support radial, axial and tilting moment loads.

It is therefore possible in many cases to replace bearing arrangements comprising a combination of radial and axial bearings by a single bearing.

This reduces, in some cases considerably, the costs and work required in the design of the adjacent construction and the fitting of bearings.

RIGIA slewing rings are small size and high precision slewing rings made by BRS bearings for Automative equipment, CNC machines, Industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment etc.

We specialized in precision slewing rings, turntable bearings with ID 50mm-300mm, four point contact ball bearings, inner geared, outer geared, light series, kaydon type, ina type, imo type etc.

Product Range:

1 - Four point contact ball slewing rings.

2 - Crossed Roller slewing rings.

3 - Three row roller slewing rings.

Special Services:

1 - Industry Automation bearings total solutions

2 - Slewing bearing design

3 - Produce by your drawing

4 - OEM service

Model:

1 - Four point contact bearings:

Series VLA20, VLI20, VLU20, VSA20, VSI20, VSU20, VSA25, VSI25, VSU25, VA, VI, VU

2 - Crossed roller bearings:

Series XSA14, XSI14, XSU14, XU, XV

Cause the X arrangement of the rolling elements, these bearings can support axial forces

from both directions as well as radial forces, tilting moment loads and any combination of

loads with a single bearing position.

This allows designs with two bearing positions to be

reduced to a single bearing position.

Crossed roller bearings are very rigid, have high

running accuracy and are supplied with normal clearance, little clearance or preload.

The

bearing outer rings can be easily located in the adjacent construction by means of

clamping rings.

About Us

BRS-Luoyang is an internationally operating bearing manufacturer located in Luoyang, China, where bearings have been mass-produced since 1956.

Based on the decades of experience in this industry and professional knowledge of international procurement, we are able to supply high quality products and service with reasonable price.

BRS supplys not only the bearing units but also a complete solution for bearings.

Company Contact:

• Posted By: 2010

• Phone: +86-379-64850388

• Address: B1209, Wanguoyinzuo, Anhui Road, Luoyang , Henan , China

• Email:

• Business Description: Luoyang BRS Bearing Co., Ltd is located in Chinese national famous bearing base - Luoyang, where

  bearings have been mass-produced since 1956 - BRS specialized in producing and selling slewing bearings, tapered roller bearing, cylindrical roller bearings, spherical roller bearings, precision bearings, angular

  contact ball bearings, thrust bearings, deep groove ball bearing, YRT bearings, etc.

  All kinds of bearings of the inner diameter Φ100mm-Φ7500mm can be manufactured.

  The company owns a powerful technical team, and established a series of strict quality control management.

  Based on the decades of experience in this industry and professional knowledge of international procurement, BRS is able to supply high quality products and service with reasonable price.

  RIGIA is a bearing brand of Luoyang BRS Bearing Co., Ltd, it originates from "Rigidity Industry Automation

  Bearing".

  Committing to the rapid development of industrial automation, BRS Bearing Company provides

  complete solutions to meet various customers' requirements on bearing rotary precision, rigidity, and

  structure.
