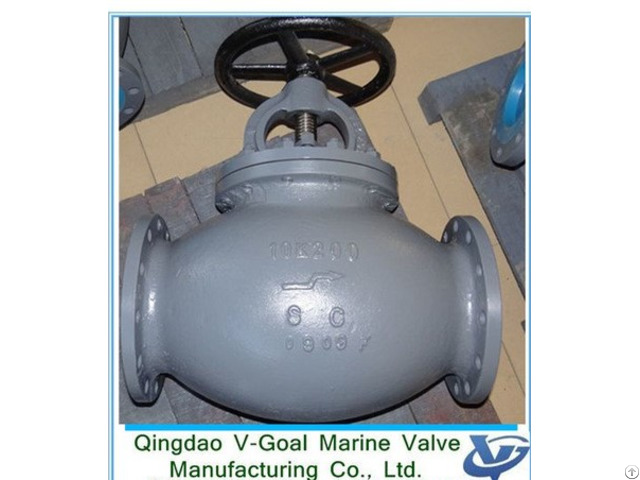

Marine Cast Steel Straight Globe Valve - China
price: 20.00 Dollar US$
Marine Cast Steel 10K Globe Valves JIS F7319 Cast Steel Globe Valve
Marine Cast Steel Straight Globe Valve Globe Valve Cast steel
PARAMETER:
Cast steel globe valve JIS F7319 Standard Materials
body sc450
bonnet sc450
seat bc6/sus420
disc sc450
stem c3771bd or be/sus420
gland bc6
gasket non-asbestos
H.
S: 8481804090
SPECIFICATIONS:
DN d L D C NO.
h t H D2
50 50 220 155 120 4 19 16 270 160
65 65 270 175 140 4 19 18 300 200
80 80 300 185 150 8 19 18 310 200
100 100 350 210 175 8 19 18 355 250
125 125 420 250 210 8 23 20 415 280
150 150 490 280 240 8 23 22 470 315
200 200 570 330 290 12 23 22 565 355
250 250 740 400 355 12 25 24 645 400 OVERVIEW:
Specifications
Standard or Nonstandard: Standard
Structure: Globe
Pressure: Medium Pressure
Power: Manual
Material: Casting Steel
Temperature of Media: Medium Temperature
Media: Water
Port Size: DN50-250
Place of Origin: Shandong, China (Mainland)
Model Number: JIS F7319
Brand Name: V-GOAL or OEM
Application: General
valve body: : cast iron
Size: DN50-250
Type: globe valve
country of origin: China
condition: brand new
disc: bronze, stainless steel
hand wheel: cast iron
valve seat: bronze stainless steel
key words: JIS F7319 10K Marine Cast Steel Globe Valve
Packaging & Delivery
Packaging Details:
JIS F7319 10K Marine Cast Steel Globe Valve package by wooden cases, suitable for the long distance ocean transportation.
Delivery Detail:
according to the final ordered quantity;
Name of Commodity: JIS F7319 10K Marine Cast Steel Globe Valve Product Description Specifications Marine Valve 1 - JIS F7319 10K Marine Cast Steel Globe Valve
2.12 months warranty 3 - Short delivery time-20 days Marine Valve Marine Valve Marine Valve Marine Valve 1 - Marine Valve Applicable Scope: Marine Valve * The products are used for controlling the medium to open and close preventing refluence in fuel oil piping, Marine Valve lubricating oil piping and water piping at temperatures 205℃ or less.
Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
Our Services
Established in 2011, our company is a professional manufacturing compamy.
We often take part in the exhibition, including the domestic and abroad.
We produce and deal in assorted of marine equipments.
Our main products including ball valve, globe valve, check valve, non return valve and butterfly valve etc.
Many of our products have CCS, BV, ABS and other relevant certificates to enter the markets.
If you are interested in our product, you can visite our V-GOAL CONCEPT:
Our culture:
Respect, Caring, Tolerance, Sharing
Our Mission:
Personal achievement, social returns
Our goal:
Manufacturing quality valve, the achievements of a century enterprise
Personal philosophy: sincere dedication to customers.
FAQ: Q: Are you trading company or manufacturer?
A: factory, founded in 2011 - Q: How many is your MOQ ?
A: Generally speaking, we don’t have MOQ.
Our price depends on the specific quantity.
(The larger the quantity is, the better price will be.
) Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge, but some special item should pay.
Q: What kind of payment does your company support?
A: T/T, L/C, Cash, Western Union etc.
are all accepted.
Q: Do you give any discount?
A: I’ll surely try my best to help you get those by the best price and good service
at the same time.
Q: I haven’t done business with you guys before, how can I trust your company?
A: Our company has been established in 2011 and improved year by year.
What’s more, we’ve got quite a lot authority certificates, for example, ABS, KR, GL, DNV, BV, etc.
Our marine valves would be easily to apply for the certificated.
I hope those above
will be persuasive enough.
Welcome to visit our factory and have a deeper communication.
WHAT'S IMPORTANT TODAY, THE QUALITY AND SERVICE, THE BETTER THING IS YOU NEED AND WE HAVE IT.
Believing that our valves are your best choice, when you face so many namely suppliers.
Company Contact:
- Phone: +8615020024281
- Address: No.8 Lingtong Road, Lingshan Town, Jimo, Qingdao city, Shandong province, China, Qingdao , Shandong , China
- Email:
- Website: http://www.v-goalvalve.com/
Published date: February 14, 2017 - Modified date: May 26, 2017
- Business Description: Qingdao V-goal Marine Valve Manufacturing Co., Ltd.
We Mainly Produce The Jis, Din And Ansi Standard Marine/industry Valves And Accessories Manufacturer.
Different Types Of Globe Valve, Gate Valve, Sdnr Valve, Ball Valve, Storm Valve, Strainer, Butterfly Valve, hose Valve, Air Vent Head, check Valve, Filter&mud Box, Flange Etc.
The valves and fittings are with different material of cast iron, cast steel, bronze, brass and aluminum etc.
Our culture:
Respect, Caring, Tolerance, Sharing
Our Mission:
Personal achievement, social returns
Our goal:
Manufacturing quality valve, the achievements of a century enterprise
Personal philosophy: sincere dedication to customers
