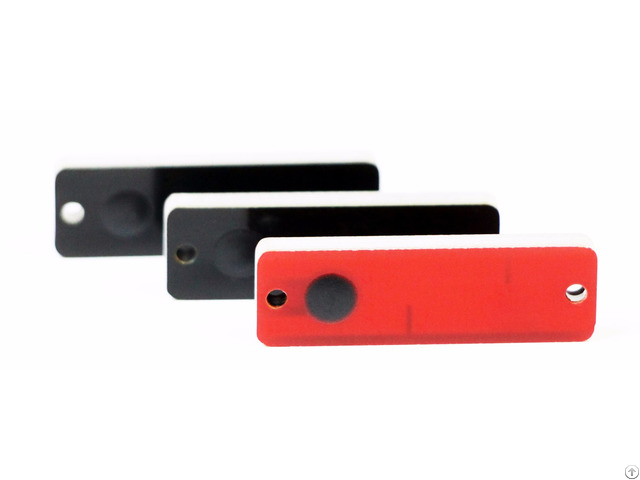

Rfid Uhf Anti Metal Tag Long Distance - China

OPP3310 Key Benefits

1 - Rugged encapsulation for harsh environments

2 - Apply to the EPC Gen2 and ISO18000-6 protocol

3 - Used in the metal surface with ultra-high performance and can be applied to other surfaces

4 - Reusable for lower cost per use

5 - Long-term work at -40℃ to +150℃ temperature

Functional Specifications:

RFID Protocol: EPC Class1 Gen2, ISO18000-6C

Frequency: US 902-928MHz, EU 865-868MHz

IC type: Alien Higgs-3

Memory: EPC 96bits (Up to 480bits), USER 512bits, TID64bits

Write Cycles: 100, 000times

Functionality: Read/wri te

Data Retention: Up to 50 Years

Applicable Surface: Metal Surfaces

Read Range(On Metal):

(Fix Reader: ThingMagic FU-M6-E, 30dBm) Up to 4.2m - (US) 902-928MHz, on metal

Up to 3.5m - (EU) 865-868MHz, on metal

Read Range:

(Handheld Reader: OP9908, R2000, 30dBm)

Up to 2.8m - (US) 902-928MHz, on metal

Up to 2.5m - (EU) 865-868MHz, on metal

Warranty: 1 Year Physical Specification:

Size: 33mmx10mm (Hole: D2mm)

Thickness: 3.5mm

Material: FR4 (PCB)

Colour: Black (Red, Blue, Green, White)

Mounting Methods: Adhesive, Screw

Weight: 3.0g Enivironmenal Specification:

IP Rating: IP68

Storage Temperature: -40°C to +150°C

Operation Temberture: -40°C to +100°C

Certifications: Reach Approved, RoHS Approved, CE Approved
