Cap Mould Bottle Injection - China

price: contact company for price

Cap Mould

1. Adopt imported P20, Germany 2316, S136 etc, steel.

2. Hot runner is designed advanced and reasonably, each cavity heat controlled independently, temperature uniform.

3. Each cavity a d core have independent cooling system, shorten production cycle time.

4.Cavity can be changed, convenient to change remark of the cap.

Mould Data

Specification NO. of Cavity 16 Cavity 24 Cavity 32 Cavity

¢28mm W*L*H(cm) 48*47*45 64*47*49 80*49*53

Weight(kg) 720 1000 1450

¢30mm W*L*H(cm) 48*48*57 66*52*54 85*53*58

Weight(kg) 920 1300 1850

¢38mm W*L*H(cm) 54*58*54 74*58*59 95*63*63

Weight(kg) 1180 1750 2600

Trade flow:

Quote: according to sample or drawing

Discussion: mold requirement, price, payment, lead time and etc.

s/c signature: PI, S/C or P/O is acceptable

Product design checking: We check the product design. If some position is not perfect, or can not be done on the mould, we will send customer the report.

Mould design: We make mould design on the basis of confirmed product design, and send to customer for confirmation.

Mould making: We start to make mold after mold design confirmed

Mould testing: Send trial samples and try-out report to customer for confirmation

Mould modification: we do the correction according to the approval by both parties

Delivery: mould, drawing, spare parts and mold cooperation manual will be shipped together.

Company Contact:

  • Phone: 008657684195776

  • Address: :No.8 Jinniu Road ,West Industry Zone ,Huangyan, Taizhou, China

  • Email: Email

Published date: April 11, 2013 -

  • Business Description: Hengxin Mould Introduction

    Zhejiang Taizhou Huangyan Hengxin Mould & Plastic Co., Ltd (HX) was established in 1992.

    Hengxin occupies more than 10,000 square meters workshop and has more than 100 employees.

    Hengxin is specialized in PET perform mould, cap mould, bottle blowing mould, household mould.

    With many years rich experience, Hengxin become one of Chinese leading and famous suppliers of PET preform mould. Especially we design and manufacture self lock PET perform mould and shut off nozzle PET perform mould by ourselves.

    Hengxin moulds have been well received abroad in Italy, Russia, Africa, Southeast Asia and the Middle East as well as at home.

    We also set up several agencies for supplying business consultation, technology support and after sale service at home and abroad.

    To survive by quality, to develop by creditability, to satisfy the customers are our guidelines.

Related listings

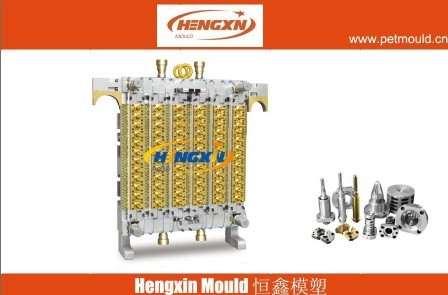

  • Pet Preform Mould With Hot Runner
