Ngp Sc80 Reinforced Graphite Composite Sheet - Chinaprice: contact company for price

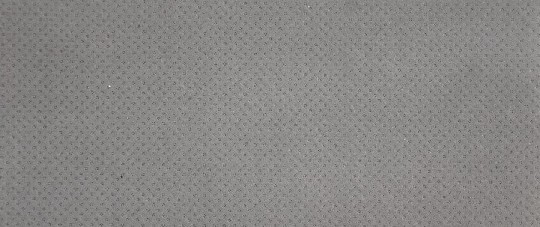

Manufactured from expanded graphite sheet with tanged
(perforated) of 0.20mm ~ 0.25mm tinplate inserted
reinforcement. It is best material for cylinder head gasket,
exhaust gasket and other engine gasket seal.
SC80-A Expanded Graphite + Steel + Expanded Graphite
SC80-B Expanded Graphite + Steel + Expanded Graphite + Steel
+ Expanded Graphite
Product Data Sheet:
Carbon Content: 99% Min.
Compressibility: 15% Max.
Recovery: 55% Min
ASTM F146 3# OIL 150 C × 5h
Thickness increase: 15% Max
Weight increase: 10% Max
ASTM F146 Fuel B R.T × 5h
Thickness increase: 10% Max
Weight increase: 10% Max
Standard Sheet Size:
500mm x 1000mm
500mm x 1200mm
500mm x 1500mm
1000mm x 1000mm
1000mm x 1500mm
Thickness: 1.0mm ~ 2.5mm
The other size and thickness are optional or according to
the requirements of customers.
Ngp Sc80 Reinforced Graphite Composite Sheet
Feel free to contact us with all your questions
- Posted By: Hefei Nordon Sealing Material Co.,Ltd
- Phone: 8655163825311
- Address: No.227,Yuping Road, Hefei, China
- Website: http://www.sealing-material.com
Published date: November 13, 2012 -
- Business Description: We nordon sealing material co.,ltd. specialize in manufacture sheet,gasket,packing and exhaust gasket and cylinder head gasket, gasket materials and seals gaskets for fluid and automobile sealing applications.
We make high quality engine cylinder head gasket sheet materials, laminates graphite gasket sheet materials, non asbestos & asbestos free gasket sheet, graphite gasket and non asbestos gasket at competitive prices for a wide range of industries. We have been selling our products for 11 years in global market.
