Ngp Sc90 Reinforced Asbestos Composite Cylinder Head Gasket Sheet - China

price: contact company for price

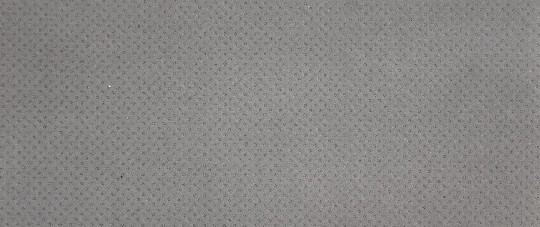

Manufactured from asbestos beater sheet with tanged (perforated) of

0.18mm ~ 0.25mm tinplate inserted reinforcement. It is best material for

cylinder head gasket, exhaust gasket and other engine gasket seal.

Composite Type:

SC90-A Asbestos + Steel + Asbestos

SC90-B Asbestos

SC90-C Steel + Asbestos

SC90-D Steel + Asbestos + Steel

SC90-E Both Size Graphite Coating Reinforced Asbestos Composite Sheet

SC90-S Both Size Silicon Coating Reinforced Asbestos Composite Sheet

Product Data Sheet:

Density: 1.40g/cm3 Min (2.0g/cm3~2.60g/cm3)

Compressibility: 8%-12%

Recovery: 45% Min

ASTM F146 3# OIL 150 C × 5h

Thickness increase: 15% Max

Weight increase: 10% Max

ASTM F146 Fuel B R.T × 5h

Thickness increase: 10% Max

Standard Sheet Size:

500mm x 1000mm

500mm x 1200mm

500mm x 1500mm

510mm x 1016mm

510mm x 1530mm

1000mm x 1000mm

1000mm x 1500mm

Thickness: 1.0mm ~ 2.5mm

The other size and thickness are optional or according to the requirements of customers


Company Contact:


  • Phone: 8655163825311

  • Address: No.227,Yuping Road, Hefei, China

  • Email: Email


Published date: July 1, 2013 -

  • Business Description: We nordon sealing material co.,ltd. specialize in manufacture sheet,gasket,packing and exhaust gasket and cylinder head gasket, gasket materials and seals gaskets for fluid and automobile sealing applications.

    We make high quality engine cylinder head gasket sheet materials, laminates graphite gasket sheet materials, non asbestos & asbestos free gasket sheet, graphite gasket and non asbestos gasket at competitive prices for a wide range of industries. We have been selling our products for 11 years in global market.
