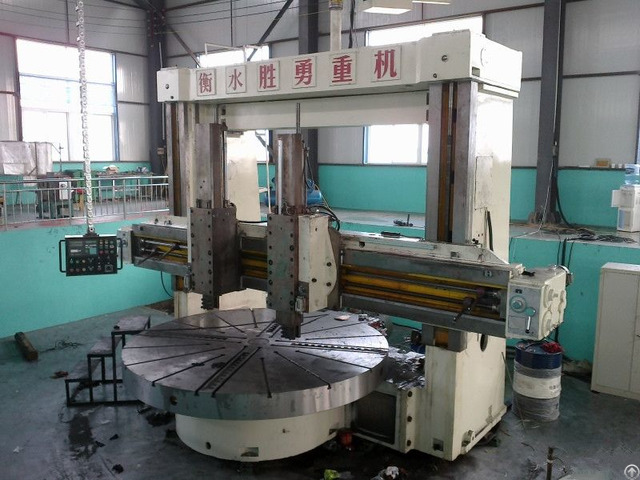

Economic Performance Cnc Vertical Turning Lathe - China

price: 90000.00 Dollar US$

Technical specification of CNC Vertical turning lathe machines C5225
1 Maximum turning diameter 2500mm
2 Maximum height of workpiece 1600/2000/2200/2500/3000 mm
3 Maximum weight of workpiece 10/20 t
4 Table diameter 2250 mm
5 Speed change of table 2~63 r/min
6 Maximum torque of table 63 KN/min
7 Vertical travel of tool post 1000/1250 mm
8 Horizontal travel of tool post 1400 mm
9 Rotation range of tool post ±30° Degree
10 Power of main motor 55 kw
11 Machine weight (About) 32~38 t


Company Contact:


  • Phone: 0086-18330891102

  • Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County,, Hengshui City, Hebei Province, China

  • Email: Email


Published date: October 11, 2016 -

  • Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the researches, developments, manufactures and sells of metalworking machines:CNC lathe , Vertical lathe , vertical turning lathe, vertical turret lathe, Heavy duty horizontal lathe machine, Gantry milling machine, plano miller, boring milling machine and roll turning lathe etc. If interested, feel free to contact us
