Sdup Astm A790 Uns32750 Gr2507 90 Degree 3d Bend - China

Material: 2507 (UNS S32750)

Technics: Forged

Type: 90 degree 3d bend

Place of Origin: Zhejiang, China (Mainland)

Model Number: pipe bend

Brand Name: Yaang

Connection: Welding, Weld

Shape: Equal

Head Code: Round

Size: 8 Inch (DN 200)

Standard Or Nonstandard: standard

Arrange: 90 degree

Packaging & Delivery

Packaging Detail: Plywood case or fumigation woodern case

Delivery Detail: Usually 2-10 days depend on the quantity

Specifications

SDUP ASTM A790 UNS32750 GR2507 90 Degree 3D Bend SCH40S DN200

1)Matarial: 2507 (UNS S32750)

2)Size: 8 Inch (DN 200)

3)Standard: ASTM A790, etc

4)Connection: Welded, Clamped, unioned, maled

5)Type: 90 degree

Key Specifications/Special Features: Bending radius(R): R=3D, 4D, 5D, 6D, 7D, 8D, 9D, 10D

Bending angle (θ): 15°, 30°, 45°, 60°, 90°, 135°, 180°

Straight Length (L): The length between two ends general from 300mm-1500mm

Outer diamete(D): D≤1800mm

Wall thickness(T): T≤120mm Eend bevel: according to the bevel of welding pipe fittings construction.

Super duplex stainless steel 2507 (UNS32750) Chemical Composition %

Grade Chemistry (Typical Values) Mechanicals

Specification Cr Ni Mo Cu N W Si Mn P

max S

max C

max Fe UTS

N/mm²

(min) 0.20%

Proof

(min) Elong

% (min) Hardness

HB (max) PREN

2507 25.0 7.0 3.8 0.75 0.25 0.28 0.80 1.20 0.035 0.020 0.030 Bal 750 500-550 25 270 41

Type

90 degree 3d bend

Size

1/2”~100" DN15~DN2500

Wall thickness

sch10, sch20, sch30, std, sch40, sch60, xs, etc

Standards

ANSI, ASTM, DIN, JIS, etc

Material

Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2, etc

Stainless Steel: ASTM A182 F304/304L/316/316L, etc

Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.

Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc

Super Duplex Stainless Steel: S32750/2507, UNS32760, etc

Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800, Hastelloy C276, Hastelloy C276, Hastelloy B1/B2/B3, Alloy 20, etc

Cu-Ni: 90/10, 70/30, etc

Surface treatment

Transparent oil, rust-proof black oil or hot galvanized

Applications

Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

90DEG-3D-Bend

The UNS32750 GR2507 90 degree 3d bend is used to change the direction of run of pipe.

it advantage is can matach long distance transition requirements, so it is commonly that bends dimension according to customer design.

usually, the bends consist of 3D, 5D, 7D even 12D series.

SDUP ASTM A790 UNS32750 GR2507 90 Degree 3D Bend's Packing & Shipping

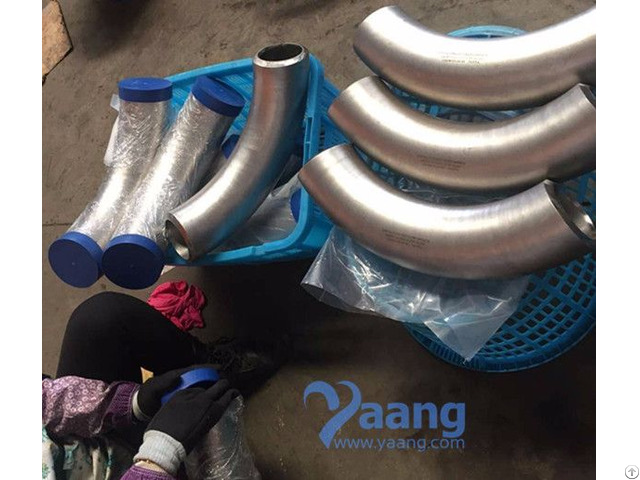

1) Packing Method:

Normal packing: plastic film or bubble paper wrapped on product's surface, protect ends with caps, pack with wooden case or load on fumifation plywood pallet .

Custom made as customers request.

Pipe Fittings Packing

2) Shipping Way: Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.

As per customer's request.

Where can we find the high quality SDUP ASTM A790 UNS32750 GR2507 90 Degree 3D Bend SCH40S DN200.
