Pipe End Forming Machine - China

Pipe End Forming

Pipe End Forming Machine(Expanding, Shrinking.

)

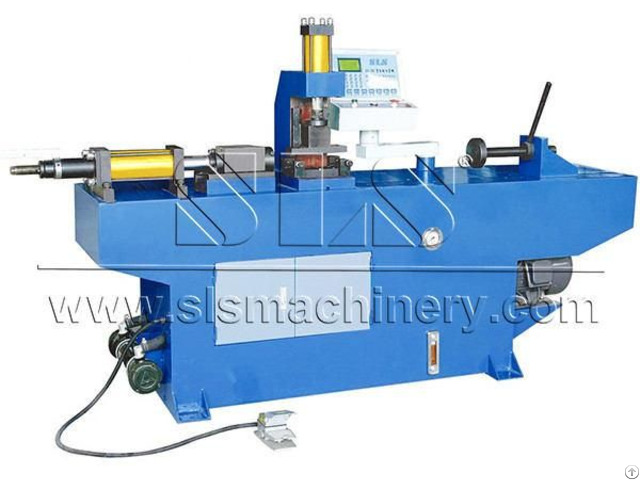

Pipe End Forming Machine

Model: TM-40

Max.

End Forming Capacity: ￠40×2mm

Max.

End Forming Stroke: 100mm

End Forming Speed: 100/3-4 mm/sec

Max.

Working Pressure: 12 Mpa

Motor Power: 4 Kw

SLS Pipe end forming machine is a kind of high efficiency, automatic machine.

It can be do different types of end forming as reduction, expansion, beads, flare and thickening.

Each of these categories has special requirements and is used in a variety of applications.

It is controlled by hydraulic and electricity at the same time.

It combines easy-to-use operation with high end forming accuracy and cost effectiveness.

STANDARD

Human Interface offers easy access to auto and manual operating modes.

All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.

Equipped with emergency stop device.

Both manual and automatic operations are available.

Tube clamping and end forming driven by hydraulic.

Available pipe material: steel, stainless, aluminum, titanium and brass.

The design of the tooling help customer easy to change.

Water cooling system ensures the equipment long-time work stably under the high temperature.

CE&ISO 9001: 2000.

OPTIONAL

Multi-stations

PLC &Touch Screen Controlling

Safety Cover

Production Line
