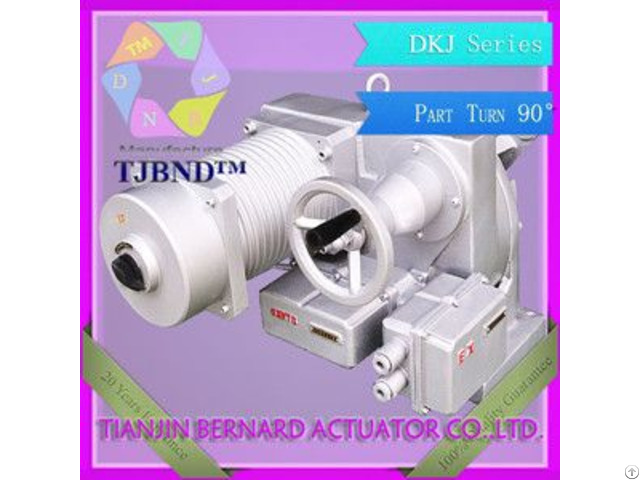

Dkj Part Turn Electric Actuator Manufacture From China - China
price: 800.00 Dollar US$
It is directly installed in the flange of the valve, thus avoid ordinary quarter-turn electric actuator’s problem of allocating connecting rod or other mechanism through the pedestal.
It not only saves the expenditure but also improves the adjustment accuracy.
Main technical performance: 1 - Input signals: mode II: 0~10 mA, DC; mode III: 4~20 mA, DC
2 - Input passages: 3
3 - Input channel resistance: mode III: 250Ω, mode II: 200Ω
4 - Output thrust: see dynamic parameter
5 - Whole travel time: see dynamic parameter
6 - Basic error: ±2.5%
7 - Dead band: ≤3%
8 - Damping characteristic: ≤ a half and three cycles
9 - Return difference: 1.5%
10 - Voltage of the power supply: 220V(+10%, ~15%) frequency: 50HZ
11 - Temperature of the operating environment:
Actuator: -10~+55°C or -25~+70°C
Amplifier: 0~+50°C
12 - Relative humidity of the operating environment:
Actuator: ≤95% Amplifier: 10%~70%
Company Contact:
- Posted By: Tianjin Bernard Actuator Co.,Ltd
- Phone: 00862227630178
- Address: tianjin china, TIANJIN , TIANJIN , China
- Email:
Published date: May 29, 2018
- Business Description: We are the industrial Valve and electric actuator manufacturer and exporter, such as gate valve, ball valve, butterfly valve, globe valve, check valve, knife gate valve and so on.
