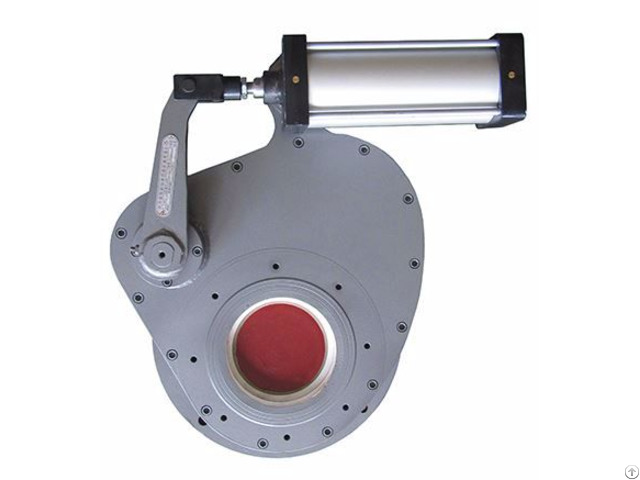

Pneumatic Rotary Type Ceramic Gate Valve - China

price: 120.00 Dollar US$

The pneumatic ceramic rotary gate valve is a high performance valve developed according to the fault frequently occurred during the operation of the dome valve. The ceramics is uses as the wear-resisting materials. So the valve widely used to replace pneumatic dome valve in power plant .
Features
1.The sealing surface of the valve is made of toughened engineering ceramics with good abrasion resistance and prolonged service life.
2.Product with customized structural length and connection size is available. Pneumatic ceramic rotary gate valve has long working life.
3.The valve plate rotational motion of the valve disc can avoid the ash deposition on the sealing surface.
4.Equipped with knife plate, the pneumatic rotary gate valve can separate the dry ash from the medium.
5.The rotation structure with shorter stroke makes for less abrasion and longer life time of the pneumatic ceramic rotary gate valve .
Technical Parameters
Size :2-12 inch DN50-DN300 Pressure:Class 125 PN1.0~PN1.6
Body material :WCB(A105), WC6, CF8(304), CF8M(316), CF3(304L), CF3M(316L) etc
Sealing material :Toughened engineering ceramics
Applications
Dense phase pneumatic conveying system of power plant.


Company Contact:


  • Phone: 0086-13393714769

  • Address: NO.28 Huagong Road,High and New Technology Zone, Zhengzhou , Henan , China

  • Email: Email


Published date: March 1, 2017 -

  • Business Description: Henan Quanshun Flow Control Science & Technology Co.,Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve ,rotating ball valve ,ball valve, control valve, butterfly valve, gate valve, check valve and others. Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.
