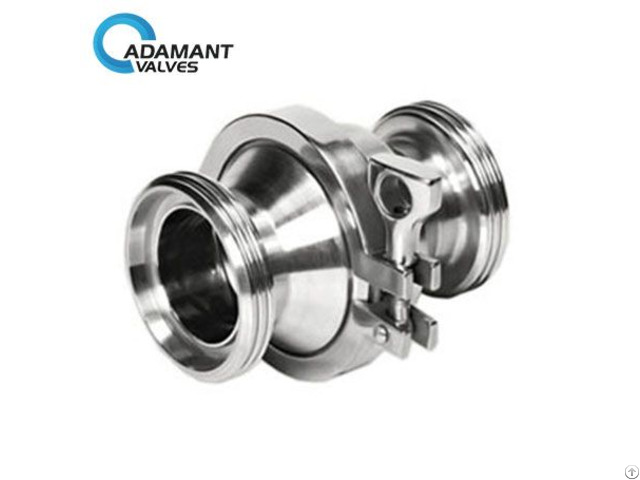

Sanitary Check Valve With Butt Weld Ends - USA

price: 112.00 Dollar US$

Application
Sanitary check valve, also known as "non-return valve", is designed for use in process piping installations to prevent reverse flow. AV-3W series is a spring check valve with butt-weld ends.

Specification:
Sizes are available from 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4")
DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)
Valve body can be AISI 304 or AISI 316L.
Valve seat: EPDM, VMQ (silicone), Viton (FPM) for choose from, all complying with FDA 21CFR177.2600.
End connection can be butt-welded, sanitary clamp, threaded or others upon request.
Max. working pressure: 145psi (10bar)
Opening pressure: 4.5psi/0.3 bar (DN25/1"), 3 psi/0.2 bar (DN32/0.75" to DN40/1.5"), 1.5 psi/0.1 bar (DN50/2" to DN100/4")
Working temperature range: 14 ~ 248°F (-10 ~ 120°C) with EPDM seat.
Surface treatment: Ra 32μin (0.8μm) as default, others available upon request.


Company Contact:


  • Phone: 9494078897

  • Address: 360 Goddard, Irvine, Irvine, CA, USA

  • Email: Email


Published date: November 8, 2016 -

  • Business Description: Adamant Valves design and manufacture a wide range of stainless steel sanitary valves and fittings such as sanitary butterfly valves,sanitary ball valves, sanitary check valves, sanitary sight glasses, and sanitary unions, etc. They are widely used in the dairy, food, beverage, pharmaceutical, cosmetic, and other industrial markets.
