Galvanized Steel Standard Wire Mesh Basket Cable - China

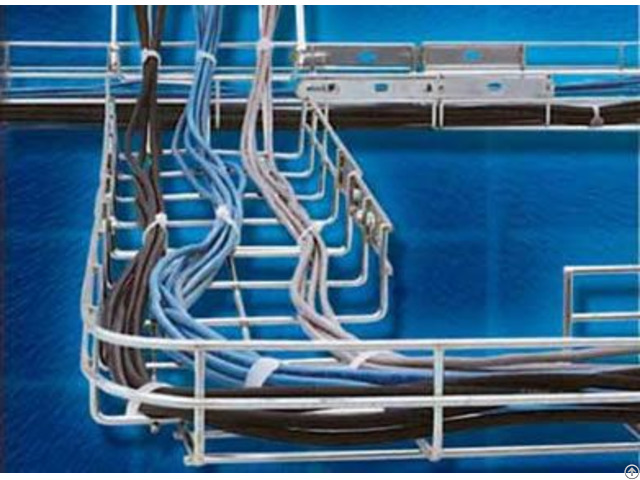

We provide standard Wire Mesh Cable Trays used for low voltage, telecommunication, and fiber optic cables supported on short spans.

Wire mesh cable trays have the advantages of time saving, cost saving and simple installation.

Welded

Wire mesh system makes securing tray effortless with no screws or clamps needed for connections.

Wire mesh cable tray has engineered tray interlocks to itself creating a tight secure bond.

It is the ideal choice for cable management

solution.

It is fabricated from high mechanical strength steel wires.

It is made with welding, channel fabricating and finishing.

The structure is welded wire with holes, formed in channel shape.

Having 2" x 4" mesh allows consistent airflow

prevents heat buildup, appearance of dust, bacterial proliferation and contaminants.

Our Wire Mesh Cable Tray is available in zinc plated, pre-galvanized, and powder coated finishing.

Standard Specifications:

Width : 50, 100, 200, 300, 450, 500, 600, and 750mm

Depth : 50, 75 and 100mm

Length : 10 feet.

Height: 50mm, width: 50-600mm.

length: 3000mm.

Easy for line check and cleaning.

Wire Mesh Size: 50*50, 50*100mm.

Surface Finish:

Electro zinc plated- for indoor use to BS EN 12329-2000, 12microns thick.

Hot Dipped Galvanized- for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

Electrolytic Polishing -for stainless steel use.

Wire Mesh tray is generally used for telecommunication and fiber optic applications and are installed on short support spans, 4 to 8 feet.
