Wire Mesh Cable Trays - China

price: contact company for price

Wire Mesh Cable Trays and Wire Basket Cable Tray, Welded Wire Configured Support Products for Cable Wire Arranging and Protection.

Steel Wire Mesh Cable Trays are popular support metal system for voltage telecommunication and fiber optic cable lines arrangement. Arch offers both perforated cable tray and welded wire mesh trays for options. The welded wire cable tray is also named wire basket cable tray according to the forms of the configured welded wire mesh structures.

Our wire mesh cable trays have four finishes, galvanized steel for indoor uses, hot dipped galvanized for outdoor uses, pvc coated steel and acid washed stainless steel.

Basic Material:

Q235 Steel (Chinese standard steel), SS304, SS316 & SS316L

Surface Finish:
Electro zinc plated- for indoor use to BS EN 12329-2000, 12microns thick.
Powder coated- for indoor use to JG/T3045-1998, between 6 and 10 microns thick
Hot Dipped Galvanized-for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Acid Washing or Electrolytic Polishing- for stainless cable basket tray use

Cable Tray Dimensions:
The dimensions of wire mesh cable tray are all internal. Available for customized.
Wire Mesh Cable Trays are constructed with a 50mm x 100mm mesh configuration..

Cable Tray Depth of 35mm, 50mm, 60mm, 75mm, 100mm &150mm.
Wire Mesh Tray Widths: 50~900mm.
Length of 2997 fit max loading capacity in 40'ft containers.
Diameters of wires are 3.8~ 6.0mm.

Wire Mesh Cable Trays Features and Major Styles:

Wire mesh cable tray has good welding strength, loading capacity and choices of surface finishes.
Related tests for cable tray are necessary for quality control. Arch routine inspections as following:

Welding strength test
loading capacity test
zinc coating thickness test
salt spray test
stainless steel material test
Features and Benefits of Welded Steel Wire Mesh and Basket Cable Trays Compared with Perforated Cable Trays:
1. Low cost.
2. Light weight.
3. Easy line check and cleaning.
4. Simple maintenance.
5. Fast heat dispersion.
6. Safe-T-Edge design to protect cables.
7. Flexible and fast installation (able to make tees, elbows and crosses etc on site)
8. Cables can be secured to clamps or ties.
9. Strong enough to withstand short circuits.
10. Weight loading capacity is 27% stronger than traditional cable trays and cable ladders.

Company Contact:

  • Phone: 0086- 318-235870

  • Address: No.180, North Dongdi Road, Industry Park, hengshui, hebei, China

  • Email: Email

Published date: August 22, 2016 -

  • Business Description: As a China manufacturer, Arch is committed to sharing our technical competence and expertise in wire based industrial screen, filter wire cloth, constructional mesh, architecture mesh, wire products for daily and commercial uses and wire mesh machines. Our website brings together the technical knowledge and information that capture the full breadth of wire mesh & screen products and services offered by us. Arch makes a comprehensive and credible source of wire mesh product information, technical data, new innovation and fast delivery.

    Arch provides our global customers a wide range of wire mesh solutions, ranging from traditional woven wire mesh, welded wire mesh, expanded metal mesh, hexagonal wire netting, wire fences, galvanized wire, annealed wire and binding wire. Arch provides start to finish service, from developing your design to production and finishing.

    Arch also provides comprehensive metal wire fabrication services for daily use and some industries including food, medicine, exhibition, etc. Our experiences and expert allow us to offer fabrication of not only woven wire and welded wire, but also perforated metal and expanded metals for a wide range of applications.

    Business Scope:

    Arch produces a full line of wire mesh and wire products. Many of the designs and processing are very innovative to customers.

    Our line of woven wire mesh includes Stainless Steel Wire Mesh, Brass Wire Mesh, Nickel Wire Mesh, Aluminum Wire Mesh and Galvanized Wire Mesh, for filtering, sieving, sifting, screen printing and other industries.

    For fencings, we have welded wire fences, woven wire fences, expanded metal fences, barbed wire and tapes and some fencing accessories. Final choice of fence system would be up to the decision of the customers and the consideration of the safety and security needs.

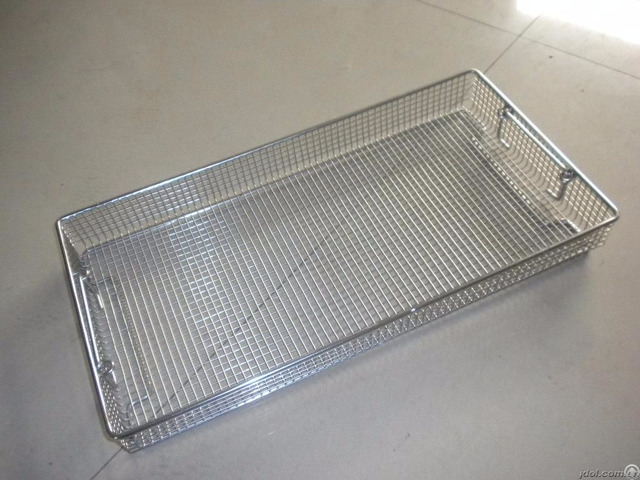

    Arch also has a line of wire fabricated products. Standard series are wire containers, wire baskets, barriers, wire racks, wire mesh shelves and partitions, wire stands, etc. Different sizes are available to suit the requirements of the application.

    Arch can also supply expanded and perforated metals for construction, decoration and filter applications. Please contact us for a price quote.
