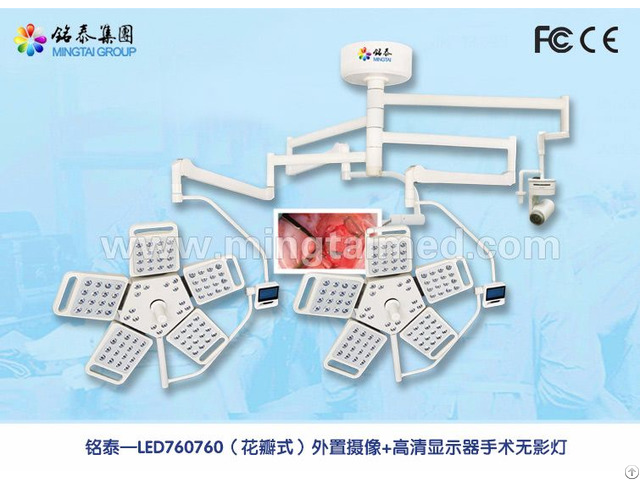

Mingtai Led760 760 External Camera Monitor Operating Light - China

Technical parameters: Technical parameters MINGTAI LED760 MINGTAI LED760 Illuminance (lux) 180, 000 180, 000 Color Temperature (Kelvin) 4, 300 4, 300 Adjustable Color Temperature (Kelvin) (Optional) 3600-5600 3600-5600 Color Rendering Index (CRI) 96 96 Red Color Index (R9) 96 96 Light brightness control standard standard Brightness control range 10—100% 10—100% Temp rise (Surgeon head) (℃) 0.5 0.5 Temp rise (surgical field) (℃) 2 2 Effective Focusing Depth (cm) 60-150 60-150 Total Irradiance Ee (W/m2) 530 530 Radiant Power Ee/ Ec (mW/m2lux) 3.3 3.3 Lighting Spot Size (mm) 100-260 100-260 Bulb Type LED LED Average Bulb Life (hours) 60, 000 60, 000 Bulb Quantity (main bulb+ auxiliary bulb) 128LEDS+384LEDS 128LEDS+385EDS Depth of illumination L1+L2 (cm) 130 130 Power Consumption (W) 70 70 Height adjustment (cm) 118 118 Power Input 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz Product feature: 1 - Shadowless lighting

Shadow will be diluted by light

Light’s symmetry can have a prefect control to shadow, no matter where the operation position is.

It owns t o the overlapping light technology

Five stars laminar flow effect

Cold flow design

Smoothly surface

24% turbulence level is less than DIN1946’s rule

No rising air 2 - Long lifetime

40 times long lifetime halogen bulb, reaching 60, 000 H, don’t need change bulb frequently.

3 - Perfect cold light effect

LED do not engender infrared ray, temperature rising in doctor head is less than 2℃, and low temperature rising in the surgical field can prevent body fluid’s losing during operation, solving the question caused by general shadowless light of impacting wound healing because of the high temperature rising 4 - Lowest irradiance

The light is visible light, no infrared and ultraviolet, less heat

Less temperature rising in the surgical field, average irradiance is 3.8mw/m2, advanced level in the world

The world shadowless operation light’s energy consumption can reduce more than 30% 5 - Suitable color temperature and high CRI

4300 color temperature can engender white light which is closed to natural light, it is suitable for visual inspection

The CRI is more than 90, can reflect the object’s color truly 6 - Health and easy to clean

Smooth and streamline surface, no cut edge

Rounded curve and smooth surface is easy to clean

Shock resistance outer cover

Handle can be steam sterilization

Spectrum and color temperature 7 - Sustainable development with high performance and efficiency

Lowest harmful substance

Mingtai LED 90% is made by aluminum, this material can be used for many times, don’t need too much material

Succinct package can reduce the material’s quantity and the rubbish, and also can reduce the carbon emission during the transportation

LED light has 40 times long life than halogen bulb, don’t need change it within 15 years, save resource

Curve and smooth surface can prevent the dust, and reduce the cleanser’s using and loss

Company Contact:

• Posted By: Shandong Mingtai Medical Equipment Group Co., LTD

• Phone: +865373281328

• Address: No.8 Yangchun Road,Qufu, Jining , Shandong , China

• Email:

• Business Description: Shandong Mingtai Medical Equipment Group Co., Ltd is established in 2000 year, supporting operating room and ICU medical equipment.

  Since company established, continue to develop, keep making progress, let people enjoy the health future with better quality and service.

  Mingtai products get ISO13485, ISO9001, CE & SFDA certification.

  Mingtai company have many patents.

  Mingtai brand series operating light, operating table, medical pendant, hospital bed and air disinfection equipment meet different distributor and customers different requirement.
