1manufacturer High Temperature Resistant Abrasive Alumina Pipes Tube - China

price: 1000.00 Dollar US$

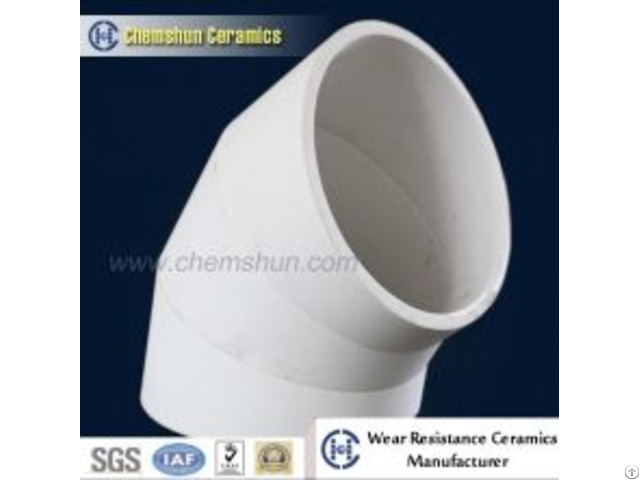

Abrasive pipe tube is a high density wear resistant material made of high purity alpha alumina powder and isostatic pressing technology.It has advantages of wear resistance, corrosion resistance, impact resistance, high temperature resistance etc. Abrasive pipe tube is quickly applied in conveying pipework instead of steel pipe and rubber lined pipeline. A ideal materials resistant to wear and corrosion protection material conveying.It is widely used in mining, metallurgy, chemical, electric power industries of coal powder, ash, liquid




-- High hardness
-- Superior abrasion
-- Corrosion and chemical resistance
-- Light weight
-- Low maintenance cost: Super wear-resistance reduce the maintenance frequency and also the maintenance cost.
-- Good fluidity : Smooth surface ensure the free flow of material without blocking

产品应用图:






Chemshun pipe Sizes
ID: 10mm~500mm Thickness and length according to customer’s needs
more sizes and customized size acceptable




-- mining industry
-- Cement industry
-- Coal handling industry
-- Steel industry
-- Port industry
-- Power plant


1) :Chemical Composition:
Al2O3 SiO2 CaO MgO Na2O
92~93% 3~6% 1~1.6% 0.2~0.8% 0.1%

2):
Physical properties:
Specific gravity (g/cc) >3.60
Apparent porosity (%) 0
Flexural Strength (20℃, Mpa) 280
Compressive strength (20℃, Mpa) 850
Rockwell hardness (HRA) 80
Vickers hardness (hv) 1050
Moh’s hardness (scale) ≥9
Thermal Expansion (20-800℃, x10-6/℃) 8
Crystal Size (μm) 1.3~3.0


Company Contact:


  • Phone: 07996790781

  • Address: Non-metal area of shangliuyuan,Economic Development zone,Pingxiang City ,Jiangxi Province ,P.R.China, PINGXIANG, JIANGXI, China

  • Email: Email


Published date: July 27, 2016 -

  • Business Description: Our company is the area of alumina ceramic abrasion-resistant product in south China,thanks to its automated mechanism and quality control system,it has greatly increased the production capacity,now the annual capacity is up to 10000tons.
