Pipe Arch Outlasts Concrete Structure Lightweight And Economical - China

price: contact company for price

Pipe-arch is a modification of round pipe in its low-profile. It is

especially designed for culverts, bridges and underpasses with limited

headroom, providing hydraulic benefits at low flow velocity. Usually,

pipe-arches are equipped with end treatments to improve performances.

Culvert end treatment in steel is light and versatile Pipe-arch fabricated by structural plates are used in arctic weather, for its performance will not be severely affected

Benefits:

Lightweight: Steel or aluminum arches are so light to easy installation, for their mass approximately 1/10 and 1/30 respectively the mass of concrete structures.

Strength: Corrugations and soil arching around the pipe-arch make this lightweight structure to withstand relatively high loads, such as the impact and vibration of trucks, cars, trains and other vehicles and equipment.

Durability: Galvanized or aluminized coating significantly extends the life span reducing percentage of repairmen or maintenance.

Aesthetic appearance: Shining pipe-arch profile adds an attractive view to entry statements or embankment.

Applications:

Pipe-arches are often applied as culverts, small bridges, fish passages, grade separations.

Products description:

Corrugation profile: pitch by depth - 36×6mm, 68×13mm and 125×26mm;

Plate thickness: 1.2 to 3.5mm;

Span: 1854mm to 7620mm;

Rise: 1397mm to 4240mm;

Corrosion protection: hot-dip galvanized steel, aluminized, polymer coated

Pipe-Arch

Part No. Span Rise End Area Min. Cover (mm) Part No. Span Rise End Area Min. Cover (mm)

(mm) (mm) (m2) CL Vehicle E-80 (mm) (mm) (m2) CL Vehicle E-80

PAC01 1854 1397 2.04 300 381 PAC36 4242 2616 8.64 759 859

PAC02 1930 1448 2.23 300 396 PAC37 4267 2946 9.75 754 864

PAC03 2057 1499 2.42 300 422 PAC38 4293 2667 9.01 756 869

PAC04 2060 1520 2.49 300 422 PAC39 4318 2997 10.13 754 874

PAC05 2134 1549 2.6 300 437 PAC40 4343 2718 9.38 754 879

PAC06 2210 1600 2.88 300 452 PAC41 4370 2870 9.76 798 884

PAC07 2240 1630 2.9 300 458 PAC42 4394 3048 10.59 760 889

PAC08 2337 1651 3.07 300 478 PAC43 4521 2769 9.75 803 914

PAC09 2413 1702 3.25 308 493 PAC44 4547 3099 10.96 799 920

PAC10 2440 1750 3.36 311 498 PAC45 4674 2819 10.13 847 945

PAC11 2489 1753 3.53 318 508 PAC46 4720 3070 11.38 844 954

PAC12 2590 1880 3.87 330 528 PAC47 4724 2870 10.5 843 955

PAC13 2616 1803 3.72 333 533 PAC48 4750 3200 11.8 722 960

PAC14 2690 2080 4.49 343 548 PAC49 4775 2921 10.96 840 965

PAC15 2692 1854 3.99 343 549 PAC50 4826 2997 11.33 832 975

PAC16 2845 1905 4.27 362 579 PAC51 4826 3251 12.26 844 975

PAC17 2896 1956 4.55 368 589 PAC52 4953 3302 12.73 878 1001

PAC18 2972 2007 4.83 378 605 PAC53 5004 3023 11.71 886 1011

PAC19 3100 1980 4.83 600 630 PAC54 5050 3330 13.24 887 1020

PAC20 3124 2057 5.11 600 635 PAC55 5055 3073 12.17 883 1021

PAC21 3251 2108 5.39 600 660 PAC56 5182 3404 13.56 924 1047

PAC22 3327 2159 5.67 600 676 PAC57 5232 3454 14.03 923 1057

PAC23 3400 2010 5.28 684 690 PAC58 5309 3505 14.59 928 1072

PAC24 3480 2210 5.95 630 706 PAC59 5490 3530 15.1 975 1108

PAC25 3531 2261 6.22 628 716 PAC60 5512 3607 15.51 967 1113

PAC26 3607 2311 6.6 633 732 PAC61 5664 3658 15.98 1009 1143

PAC27 3730 2290 6.61 722 756 PAC62 5715 3708 16.44 1007 1153

PAC28 3759 2362 6.87 674 762 PAC63 5890 3710 17.07 1056 1188

PAC29 3810 2413 7.25 672 772 PAC64 5944 3810 17.47 1053 1199

PAC30 3861 2464 7.53 671 782 PAC65 5994 3861 18.02 1051 1209

PAC31 3890 2690 8.29 682 788 PAC66 6071 3912 18.58 1056 1224

PAC32 3912 2540 7.9 665 793 PAC67 6250 3910 19.18 1106 1260

PAC33 4039 2845 9.01 709 818 PAC68 6274 4013 19.6 1095 1265

PAC34 4089 2565 8.27 716 828 PAC69 7040 4060 22.48 1422 1418

PAC35 4115 2896 9.48 715 833 PAC70 7620 4240 25.27 1571 1534


Company Contact:


  • Phone: 8631868484399

  • Address: 23 Daqing,Road,Hengshui,Hebei,China., hengshui, China

  • Email: Email


Published date: August 14, 2013 -

  • Business Description: Lake Metal Culvert Co., Ltd. has been striving for a leader in the field

    of metal culverts. It has set up a solid reputation by manufacturing

    professional metal culverts, state of art corrugated metal pipes,

    structural plates and end treatments.

    The right choice

    When we started from scratch in 1998, we focused on manufacture economic and attractive infrastructure solutions in a full series of sizes and types, covering culverts, storm water sewer, sanitary sewer, small bridge, railway tunnel, underpasses and grade separations. Give us your applications, and our technical team will work hard to find out the best solutions.

    The right quality

    Although a lot of products are manufactured, they have something in common better quality and better performance. Corrugated metal pipe, structural plates in different profiles, and end treatments are all designed according to practical conditions. They are not only durable and economic, but also add attractiveness to the landscape.

    The most trusted team

    Lake s team is a hard work team, a professional team. Our designers have rich experiences and they know how to resolve problems, for example how to select the right foundation, what material and shape should be used. Our workers, though they are not so familiar with the design, they are very skilled at installing.

    Lake Metal Culvert Company benefits leading edge project management and first class products. We believe that our hard work will win reputation and trust by our customers both home and abroad.

Related listings

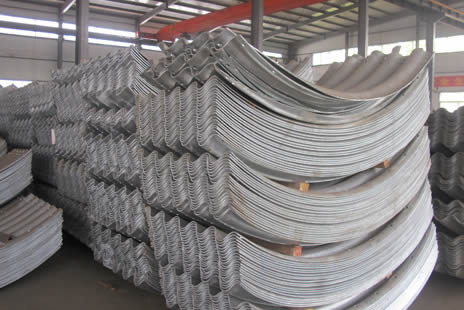

  • Corrugated Structural Plate Assembled Into Seven Arches
