Titanium Mmo Anode - China

price: 1.80 Dollar US$

Chemical Composition:
Substrate:ASTM B265Gr1 or Gr2
Catalyst:Mixed Metal Oxide
Product Categories
ICCP Anode
Sacrificial Anode
Reference Electrode
Functional Anode
MMO Anode For Water Treament
Anode For Electrowinning
Anode For Electroplating
> Home > Products > ICCP Anode > Content
MMO Ribbon Anode
Easy to install on site; Long operating life; Easy maintaince; Light weight; Low average cost per year.
Send Inquiry

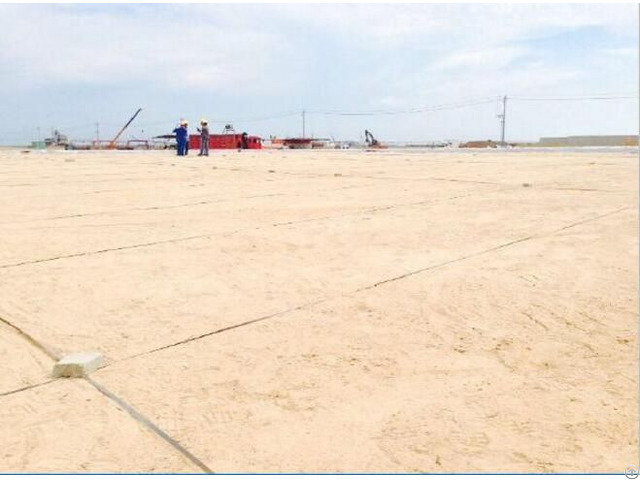

FeaturesProduct Details The anodes are composed of titanium ribbon substrate coated with a mixed metal oxide catalyst. The anodes can achieve 50 years operating lifespan in a current density of 17mA/m. The mixed metal oxide anodes are designed for protecting the bottoms of many large-scale storage tanks. They can be used in sands with various levels of moisture and salt contents without any carbon filling materials. MMO meshes or ribbons were welded together by metal titanium current distribution member as impressed-current anodes in storage tanks’ bottoms for cathodic protection system.
Advantages: Lightweight – 100 feet of the 1/4” (6.35mm) ribbon weighs slightly more than 1lb;
Ductile – composite materials eliminate problems with breakage of brittle materials such as graphite and silicon iron;
Dimensional stability eliminates issues associated with connection seals;
Compatible with a wide range of cathodic protection media (water, coke, seawater, brackish water);
Superior corrosion resistance compared to graphite, silicon iron, and other alternative materials;
Conveniently cut and welded in the field to suit various geometries;
Even current distribution;
Chemical corrosion resistance;
Low system electrical resistance.
Reinforced concrete structures;
Buried steel structures;
Underground and above ground storage tanks; Buried pipelines. Working Environment: Including soil, fresh water, brackish water, and seawater.

Company Contact:

  • Phone: 8613571492870

  • Address: No.32, Chuanghui Road, New Industrial Hi-Tech Zon, Xi'an, China

  • Email: Email

Published date: October 13, 2017 -

  • Business Description: Shaanxi Elade New Material Technology Co.,Ltd located in Xi An Hi Tech Development Zone, is a certified high & new technology company, specialized in R&D, manufacturing and selling titanium and various substrates electrodes, as well as nonferrous metals and their deep processed products.

    Elade has its own professional technical team who has been cooperating closely with XiAn Jiaotong University on researching and developing electrodes in several years. With continuous improvement and innovation on design and processing technique, its products win good reputation and possess more competitive in the market; especially the metal electrodes suitable to various chemical industries had reached the international advanced level both on the product quality and performance.
    Elade is mainly engaged in metal materials like titanium, tantalum, niobium and zirconium as well as various composite anode and cathode materials applicable to the field of electrochemistry, which have been successfully used in many fields, such as production of chlor alkali, chlorate and perchlorate, electroextraction of non ferrous metals, electro deposition, electroplating, electrophoresis, electro dialysis, electro synthesis, ionized water synthesizer, cathodic protection, formation of aluminum and copper foils and after treatment.

    Elade also provides integrated design, manufacture and technical consulting service, including surface anodic oxidation and corrosion protection through Ru and Pd coatings for titanium equipments, electrodeposition, electroplating water treatment and so on. The company has complete advanced management system, production and testing equipments, and has obtained ISO9001 Quality System Certification.
