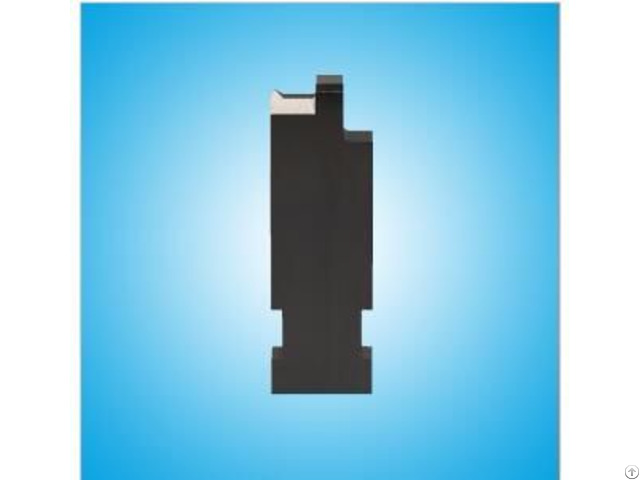

Experienced Manufacturer Of Tungsten Carbide Profile Grinding Parts - Chinaprice: 90.00 Dollar US$
Surface Processing: Hip
Process: Forming Process
Cutting Length: 20mm
Origin: Dong Guan
Processing Type: Shaping Metal
Mould: Multistep Progressive Dies
Fine Blanking: Open
Industry: Metal Stamping Parts
Processing: Profile Grinding(Pg)
The cutting length area with profile grinding, the surface roughness is around Ra0.1, tolearnce can be controlled in ±0.002mm. Grind cutting area only, without any hand polishing.
Processing Machine: Surface grinder, Profile Grinder
Outside contour Tol.: ±0.001mm
Profile Tol.: ±0.002mm
Measuring instruments: Projector, Toolmaker Microscope
Design: non-standard parts, according to customer's request
Quotation: We will quote in tow hours once we receive inquiries
Delivery Time: 2days
Packing: Carton, attached QuaEnvironments:
Whole production department with stable temperature 20ºC to keep the accuracy of machines.
Whole QC department keep the same temperature 20ºC to make sure the parts in shape.
We import various kinds of grade carbide to meet worldwide customers' demand.:
Application fields of carbide:
Ultrafine grades: grain size 0.2-0.5um, thanks to their high transverse rupture strength these grades are particularly suitable for stamping thin sheet metal and foils with extremely thin-walled punches.
Submicron grades: grain size 0.5-0.8um, For difficult abrasive materials and wherever there is a tendency for galling; Excellent wear resistance;
- Posted By: HONGYU MOLD
- Phone: +86-13412001563
- Address: No.,126 XINMA ROAD XINMALIAN VILLAGE, DONGGUAN, GUANGDONG, China
- Website: http://www.dghongyumold.com
Published date: July 21, 2016 - Modified date: August 11, 2016
- Business Description: stamping die/punch/wire cutting products/stamping punch/spare parts/tungsten carbide punch.
Scope of business: Stamping molding assembly, tungsten carbide tooling, CNC profile grinding, CNC wire cutting, ceramics molding components, carbide punches, pins & bushes, profile grinding of mirror surface.
