Manual Die Cutting And Creasing Machine - China

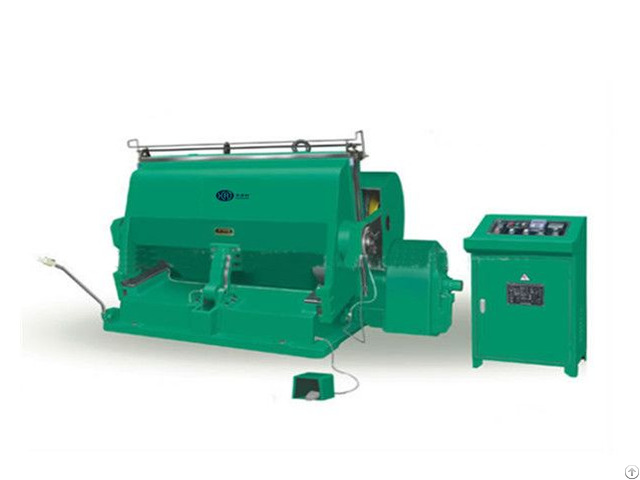

Manual die-cutting and creasing machine

Die-Cutting Machine

Manual die-cutting machine

Technical parameters:

Model Max.

Rule Area Working speed The length of the indentation section Total power Weight Overall Dimensions(L×W×H)

HD2-401C 750×520mm 28±2(sheets/min) ﹤15m 2.2kw 2000kg 1260×1350×1280mm

HD2-203D 930×670mm 23±2(sheets/min) ﹤25m 4.0kw 3000kg 1800×1600×1600mm

HD2-1100 1100×800mm 20±2(sheets /min) ﹤32m 5.5kw 4500kg 1900×1800×1700mm

HD2-1200 1200×830mm 20±2(sheets /min) ﹤35m 5.5kw 4800kg 1900×2000×1700mm

HD2-1300 1300×920mm 18±2(sheets /min) ﹤40m 5.5 kw/7.5kw 6000kg 2000×2400×1800mm

HD2-1400 1400×1000mm 18±2(sheets /min) ﹤45m 5.5 kw/7.5kw 6500kg 2000×2450×1900mm

HD2-1500 1500×1050mm 18±2(sheets /min) ﹤45m 5.5 kw/7.5kw 7000kg 2000×2500×1930mm

HD2-1600 1600×1250mm 16±2(sheets /min) ﹤50m 11kw 11000kg 2170×2560×2130mm

HD2-1800 1800×1300mm 16±2 (sheets /min) ﹤62m 15kw 13500kg 2240×2800×2230mm

Main Features

1) Equip with four insurance parts and four functions.

The insurance part including gantry insurance, triangle insurance, hand shank insurance and automatic light-operated insurance to makes the machine safety and reliable.

2)The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and reliable.

3)Adjustable template makes the plate loading, unloading more easily.

Disposition: Centralized oil supplying.

4) Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted.
