Tungsten Carbide Single Facer Corrugated Roller - China
price: 500.00 Dollar US$

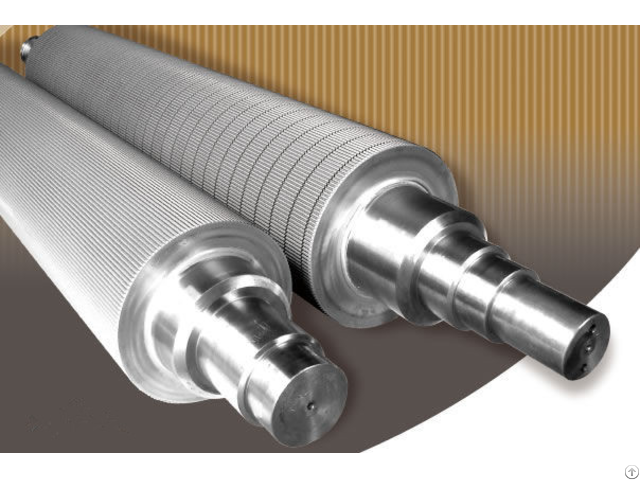

Tungsten Carbide Single Facer Corrugated Roller
1 - Material : Special 48CrMo alloy steel fine forgings
2 - Hardness: >HRC58 Quenching layer depth : 5-7mm
3 - Coating Thickness 0.06and 0.07mm Tungsten Coating Thickness
4 - Surface plating: Micro hardness HV900-1250
5 - Combination hardness >75MPa
6 - Visible optical porosity <1%
7 - The optimization of economic type design
8 - High-speed Corrugating Rolls : twice fine grinding
♦ High limit deviation of tooth≤0.02mm
♦ Limit deviation of tooth thickness≤0.015mm
♦ Limit deviation of tooth profile±0.02mm
♦ Tooth top circle≤0.025mm
♦ The limit deviation of the equality of the tooth flank face≤0.02mm
♦ Roughness Ra ≤0.4μm
♦ The limit deviation of tooth±20″
♦ The height limit deviation of middle and high rollers is±5%
Related product: Hard Chrome corrugating roll, pressure roll, glue roll and doctor roll, etc.
Delivery by sea
Use non-fumigation wooden box, it's convenient to customs clearance.
Could save customers more time.
huataolover001(at)outlook .
com whatsapp /wechat +8617736903537
Company Contact:
- Posted By: Huatao Group
- Phone: 8631180690567
- Address: Zhonghua North Street, Shijiazhuang , Hebei , China
- Email:
Published date: June 15, 2019
- Business Description: We engaged in corrugator belts,corrugating rolls,single facer machine,double facer machine,blade& knife,creaser wheel,Die cutting anvil cover series,speed up system, belt auto guide, spare parts for corrugated cardboard,paper making machine and printing machine,etc.
Once cooperation,Life time Partner!
