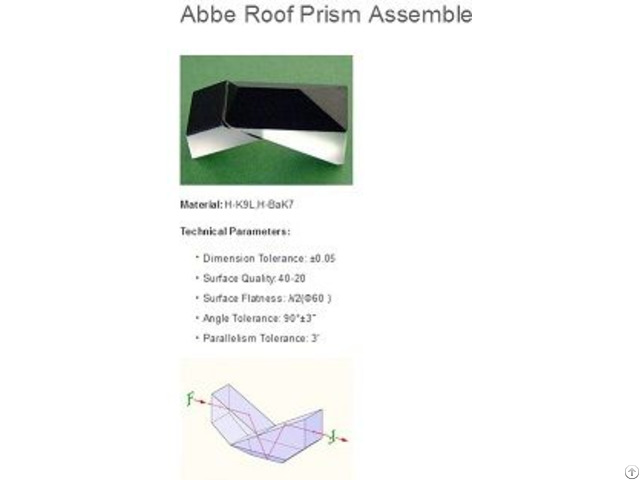

Abbe Roof Prism Assembly - China

price: 120.00 Dollar US$

Material:H-K9L, H-BaK7, etc;
Surface quality:40-20/20-10;
Dimensional tolerance:0.05mm;
Surface flatness:lambda/2;
Angle tolerance:3';
Parallelism tolerance:3'.

The prism consists of a block of glass forming a right prism with 30°–60°–90° triangular faces. When in use, a beam of light enters face AB, is refracted and undergoes total internal reflection from face BC, and is refracted again on exiting face AC. The prism is designed such that one particular wavelength of the light exits the prism at a deviation angle (relative to the light's original path) of exactly 60°. This is the minimum possible deviation of the prism, all other wavelengths being deviated by greater angles. By rotating the prism (in the plane of the diagram) around any point O on the face AB, the wavelength which is deviated by 60° can be selected.

Company Contact:

  • Phone: 0086-769-86080086

  • Address: No.2 Xianglong Rd,Xincheng Dist,Shilong Town, Dongguan, Guangdong, China

  • Email: Email

Published date: August 25, 2016 -

  • Business Description: Taiyo Optics Co. Ltd. is a professional supplier of prism. It has been focusing on processing and manufacturing optical prism for more than 20 years. Taiyo has established its first factory in 1993 at China, Nanyang. The second factory in Dongguan, China was established in 2004. The products include optical prism, cylindrical lens, and other planar optical components.
