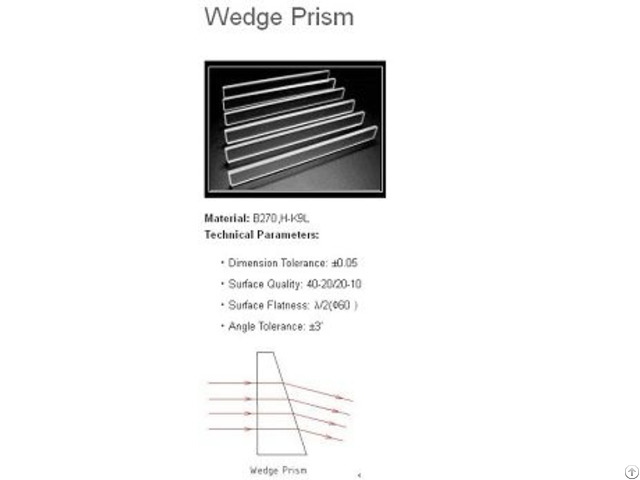

Wedge Prism - China

price: 60.00 Dollar US$

The wedge prism is a prism with a shallow angle between its input and output surfaces. This angle is usually 3 degrees or less.

Refraction at the surfaces causes the prism to deflect light by a fixed angle. When viewing a scene through such a prism, objects

will appear to be offset by an amount that varies with their distance from the prism.

Material: H-K9L, H-BaK7, etc;
Surface quality:40-20/20-10;
Dimensional tolerance:0.05mm;
Surface flatness:lambda/2;
Angle tolerance:2'


Company Contact:


  • Phone: 0086-769-86080086

  • Address: No.2 Xianglong Rd,Xincheng Dist,Shilong Town, Dongguan, Guangdong, China

  • Email: Email


Published date: August 23, 2016 -

  • Business Description: Taiyo Optics Co. Ltd. is a professional supplier of prism. It has been focusing on processing and manufacturing optical prism for more than 20 years. Taiyo has established its first factory in 1993 at China, Nanyang. The second factory in Dongguan, China was established in 2004. The products include optical prism, cylindrical lens, and other planar optical components.
