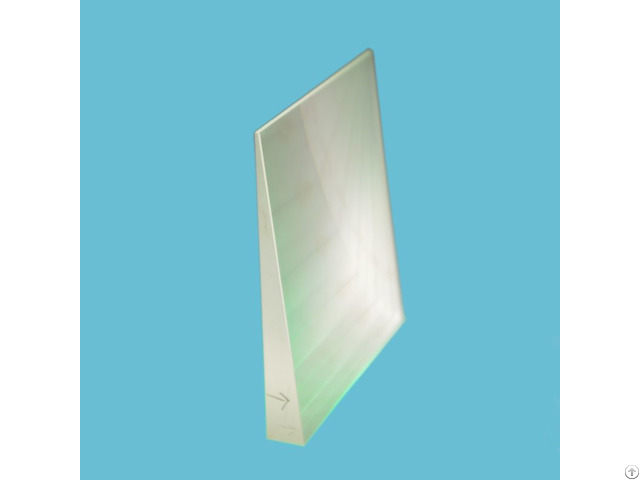

Fused Silica Wedge Prism

PARAMETER:

The wedge prism is a prism with a shallow angle between its input and output surfaces.

This angle is usually 3 degrees or less.

Refraction at the surfaces causes the prism to deflect light by a fixed angle.

When viewing a scene through such a prism, objects will appear to be offset by an amount that varies with their distance from the prism.

Specification

Material BK7 glass / Fused silica

Surface Flatness: < λ / 10 @ 633nm ~λ/4@633nm

Surface Quality: 60/40, 40/20, 20/10, 10/5 (both sides)

Dimension Tolerance: <+ 0.00 / – 0.20 mm

Center Thickness Tolerance: <± 0.25 mm

Clear Aperture: >85% of dimension

Bevel: 0.25 mm x 45°

Wedge Angle Options: (0.5) = 30 minute +/-3 minutes

(1.0) = 1 degree +/-6 minutes

(2.0) = 2 degree +/- 6 minutes

(3.0) = 3 degree +/- 6 minutes

Coating As per customer’s request
