Xps Insulation Board Extruder Screws And Barrels - China

price: contact company for price

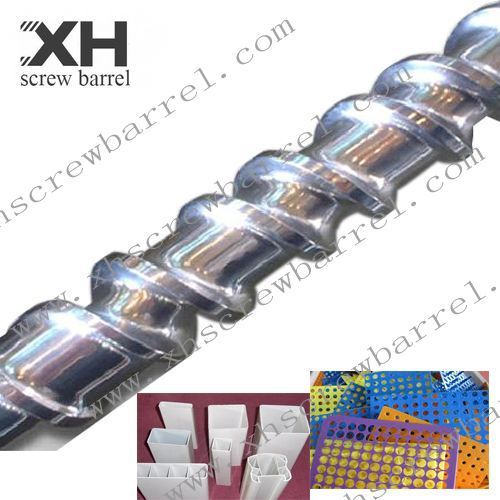

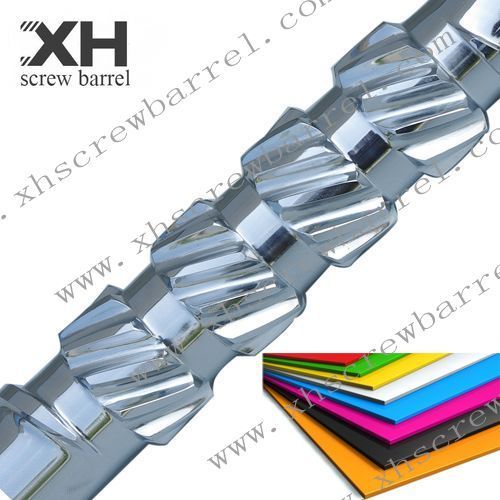

XPS insulation board extruder screw barrel

Specification

Screw diameter: Ø12-300MM L/D:15-55

Barrel diameter: Ø25-500MM Length:300-1000MM

Material

38CrMoAlA(JIS SACM645)

Cr12MOV(JIS SKD-11)

4Cr5MoSiV1(JIS SKD-61)

42CrMo(AISI 4140)

9Cr18MoV

Stainless steel, etc.

Parameter

Roughness of the surface:Ra0.4um

Linearity of the screw: ≤0.015mm

Linear axis limit: ≤0.02mm

Hardness after Hardening & Tempering: HB240-280

Fragility of Nitration:≤Two class

Feature

XPS screw barrel is specifically for XPS foam board, XPS

foam insulation board, XPS foam sheet, XPS foam tube, XPS

foam insulation tube. Raw material is XPS, PS and so on.


Company Contact:


  • Phone: 8615957480610

  • Address: Room 901.Building No.2, Lane 165, Yunxia Road, Nin, Ningbo, China

  • Email: Email


Published date: March 5, 2014 -

  • Business Description: Ningbo Xuhao Industry is a work team of design, manufacture, and sales

    screw barrel for injection moulding machine, blow moulding machine,

    extruder machine, rubber machine, and other plastic machine. We own the

    advanced analysis equipment to ensure the quality of the material, heat

    treatment, alloy coating spraying, etc. All our screw barrel are

    customed made as drawing or machinery brand Number (Arburg, Autojector,

    Bettenfeld, Bipel, Boy, Bucher, Chen Hsong, Chaun LihFa, Cincinnati,

    Demag, desma, Dima, Dong Shin, Egan, Engel, Husky, JSW, Nissei, Toyo,

    Toshiba, Vistar, etc.)
