Hot Acrylic Sheet Printing Machine Gen5 Print Head Uv Digital Flatbed Printer - China

price: contact company for price

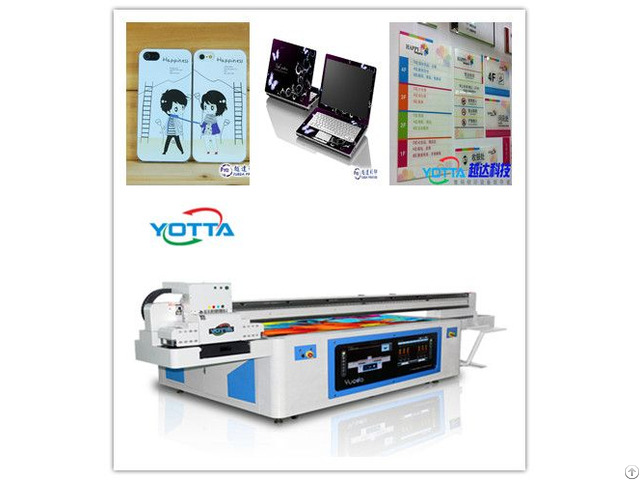

YD3216-RD wide format UV flatbed printer

Adopting Ricoh Gen5 print heads, with components carefully chosen and humanization designs, YD3216-RD wide format UV flatbed printer has high performance in print speed and resolution. It delivers a superior compatibility with the widest range of substrates with multi bright colors on its large bed of 3200mm X 1600mm, including rigid and flexible materials up to 100mm thick and weighing up to 50kg per square meter.
n addition to the basic 6 colors (CMYK, LC, LM) printing mode, it also possess many kinds of white ink printing mode, varnish printing workable too. Therefore, this high quality printing machine has sufficient capacity to produce special effects, such as 3D effect, relief effect, gradient effect etc. Equipped with simple but high-end RIP software, the image quality is superior, meeting the requirements of all industries.




With YD3216-RD flatbed printer, you can print

Rigid materials: Glass, Ceramic, Metal plate, Wood, Acrylic panel, KT board, PVC sheet, Melamine sheet, Marble board, etc.
Flexible materials: Paper, Plastic film, Leather, Textile, etc.
Features of YD3216-RD wide format flatbed printer

1. Ricoh Gen5 industrial print head
YD3216-RD flat bed printer adopts new grey level Ricoh Gen5 stainless steel print heads included internal heating system. Its feature of variable drop printing delivers the highest print resolution of 600X2400dpi, can clearly print 2pt font. The stable working performance and long lifetime give it the ability for 24 hours non-stop running.
Ricoh Gen5 print head

2. HIWIN mute double linear guide rail
Adopting HIWIN mute double linear guide rail which is strong, low noise and durable for smooth moving of the car and stable printing.


Dual-level precision screw rod
3. Dual-level precision screw rod
YOTTA UV printers use Dual-level precision screw rod for driving control, substantial increase in landing precision of ink, so as to avoid the emergence of color banding. The acrew rod is high-accurancy, low-noise and durable.

4. Automatic media thickness measurement
YD3216-RD printer has the function to measure the thickness of print materials, so as to ensure the accurancy, save time and labor, further to simplify your workflow and provide high efficiency.

5.Loading and unloading material device.
Easy to put on and put down the large and overweight materials, labor-saving.

6. Stable negative pressure system
The negative pressure system is to make the ink supply more smooth and well-distributed, to achieve excellent print results.

7. Automatically skip over the blank area
This wide format UV printer can automatically recognize and to skip over the blank area of the images.

8. 7-color optional printing
YOTTA flatbed printers direct print onto a variety of medias with optional inks: C, M, Y, K, LC, LM. White ink and varnish are allowed to help printing embossed, 3D and other effects.
Model YD3216-RD
Print size 3200×1600 mm
Print head Ricoh-Gen5 grey level piezo print head
Print resolution 600×2400 dpi
Print speed 4 Pass, 38 M2/h; 6 Pass, 29 M2/h; 8 Pass, 22 M2/h;
Print mode unidirectional and bidirectional
Ink color LM, LC, Y, M, C, K (Optional)
Special ink UV white ink or UV varnish
Ink type Environmental UV curing ink (NO VOC)
Number of head 3-8 pcs
Materials thickness Up to 100mm
Materials type Rigid and flexible materials
Software PhotoPrint, Seeget
Input format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Power requirement 220V/AC(±10%), 50/60HZ;6KW
Printer weight 1500KG
Printer size 5150 mm[L]×2740 mm[W]×1400 mm[H]
Working environment Separate, little sunlight, ventilated workshop. Temperature: 18℃~30℃(64℉~86℉) Humidity: 30%~70%(Non-condensing) Ventilation equipment:Suggest Overhead exhaust fan, displacement 600 cfm


Company Contact:


  • Phone: 13925227012

  • Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen, China

  • Email: Email


Published date: September 24, 2016 -

  • Business Description: Yueda specializes in manufacturing UV flatbed printer for over 8 years.Our printing machine can print any picture on any flat materials with embossment and 3D effect.
