PVC Ceiling Panel Making Machine with Online Printing / PVC Ceiling Machine

PVC Board Extrusion Line

PVC Plastic Artificial Marble Sheet Production Line

PVC Edge Banding Machine

PVC Electric Conduit Pipe Making Machine

PVC Corner Profile Production Line

PVC & PE Single Screw Extruder

Scew Material: 38 CrMoAlA Temperature-control: Omron control Heating method: Foundry Aluminum Heate

Scew Material: 38 CrMoAlA

Temperature-control: Omron control

Heating method: Foundry Aluminum Heate

PVC ceiling machine can be discussed based on different materials, it is a kind of high efficiency equipment for plastic extrusion, it is mainly composed by force feeder, soft plasticization screw and barrel, high precision gearbox, exhaust system, it is features of even mixing, better plasticization, stable working, high capacity, and it is suitable for produce PVC products from mixed powder, within different mold and other auxiliary equipments, it can produce plastic pipe, profile, board, sheet, granules and so on.

Extrusion Flow

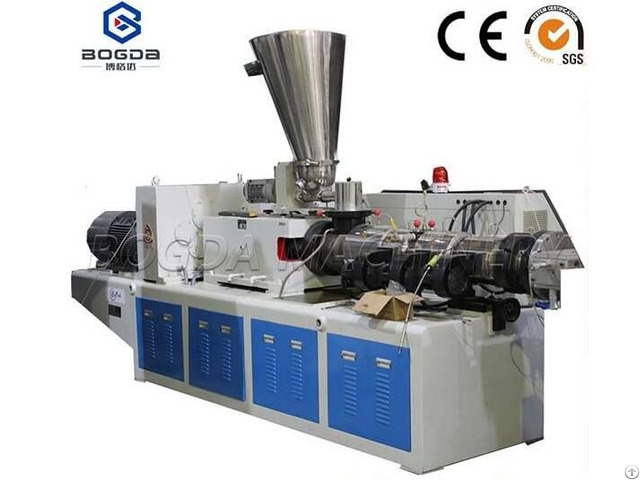

PVC ceiling panel machine: SJZ Series Conical Twin Screw Extruder Machine → Die mould → Vacuum Calibration Table → Haul-off → Cutting Machine → Stacker.

(Note: Other Auxiliary Machine, such as Crusher, Pulverizer, Mixer, will be provided according to client's requirements)

Technical parameter

Model SJZ51 SJZ65

Screw diameter (mm) 51/105 65/132

Screw rotation speed (r/min) 1-30 1-34.7

Effective length of screw (mm) 1050 1430

Main motor power (kw) 22 37

Barrel heating power (kw) 18 24

Capacity (kg/h) 110 250

Central height (mm) 1000

Net Weight(kg) 3200 5000
