Champion Vee Wire Cylinder - India

price: contact company for price

CHAMPION VEE WIRE CYLINDERS

UNDER CONSTRUCTION & TESTING

Wire - Wrapped Screens

Unsurpassed in design, construction and performance, Champion Screens All-Welded wire-wrapped screen provides field-proven sand control. The wire-wrapped screen features a keystone-shaped, wedge, vee shaped wrap wire on round rib wires for improved plugging resistance.

Advantages over conventional screens are significant.

· Extra strength

The Champion wire wrapped screen combines high strength and superior corrosion resistance for unsurpassed durability during installation or retrieval. The stainless steel wrap wire—firmly welded to every rib wire—is designed not to shift or unwind in the unlikely event should it be damaged downhole.

· Large inlet area

The Champion screen has a much larger inlet area than conventional wire-wrapped screens. No solder strips, weld beads or lugs are present to block flow. Plus, a larger inlet area results in lower entrance velocity for produced fluids, reducing the potential for screen erosion.

· Filtration assurance

With precise gauge control for reliability, gauge spacing of the screen is permanent. Weld strength and wire orientation are controlled to ensure the gauge required is the gauge delivered down hole.

· Filter Construction

Round wires form the ribs, while the diameter and number are specified by the strength required and size of screen. Wedge – Vee - Keystone-shaped wire is used for the wrap wires, which are helically wrapped around the preset vertical rib wires. Each point of contact is welded using a proprietary Champion procedure. Wrapping is accurately controlled—resulting in a uniform, precise gauge. The keystone shape of the wrap wire forms “V” shaped openings between wraps. This shape opening provides self-cleaning action and greatly reduces flow friction. Smaller particles can easily pass through the continuous slot while larger ones are held out without inhibiting the total inlet area.

Unsurpassed in design, construction and performance, Champion Screens All-Welded wire-wrapped screen provides field-proven sand control. The wire-wrapped screen features


Company Contact:


  • Phone: 918571231755

  • Address: 1-32, OPPOSITE GMR POLYTECHNIC COLLEGE,NIMMANAPALL, MADANAPALLI, India

  • Email: Email


Published date: March 23, 2013 -

  • Business Description: Champion Screens Manufacturing Company is a subsidiary of Champion

    Filters Manufacturing Company A 3 decade old organization specialized

    in design & manufacture of all types of Automatic Filtration &

    Screening Systems.

    Champion Screens produces wedge wire screens for virtually all screening applications.

    We have separate wedge wire screen making machinery for cylindrical screens & flat panels.

    We have the capability to produce screens as large as 4 meters in diameter X 6 meters length in one single piece construction.

    Wedge wire flat panels are made on flat panel manufacturing machine. So we can offer a truly flat panel instead of a re rolled slit cylindrical screen. Needless to say this offers better screening efficiency and better dewatering ability.

    Champion Screens have full fledged wedge wire manufacturing plant in house. Wedge wire (Vee Shaped or V wires) are manufactured in house. There are no limitations of size or shape of wedge wire. We can make vee shaped, v shaped, triangular shaped, trapezoidal wedge shaped, rectangular wedge, drop shaped wedge , wedge wires in any profile for optimum production.

    Cylindrical wedge wire screens are made by wrapping a wedge shaped (v shaped) wire on a cage of longitudinal rods. Each & Every intersection of this wedge wire & beneath support rods is welded.

    We make vee wire screens from Low carbon steel wedge wire, Stainless Steel grade 304 wedge wire, Stainless Steel AISI 316 wedge wire, Duplex Stainless Steel Wedge Wire, Super Duplex Stainless Steel Wedge Wire.

    We make wedge wires from wires as small as 0.25mm diameter to 18mm width & above if required.

    Please email us at championscreens2012@gmail.com for more information.

    Screens Cylinders made from trapezoidal wire wrapped filter screen

Related listings

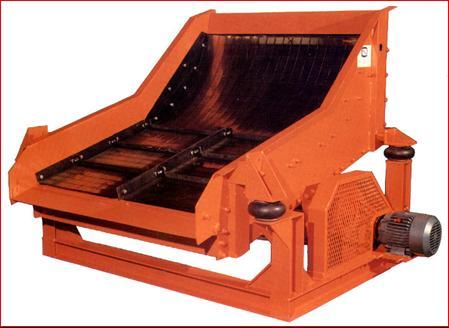

  • Champion Dewatering Screen
    Champion Dewatering Screen
    Nuclear Power - CHAMPION SCREENS MANUFACTURING COMPANY - India - March 23, 2013 - contact company for price

    The Champion Dewatering screen combines vibrating action with a variable sloping deck that removes substantially more water than static sieves. Yet, it is compact enough to replace static sieves with minimum change. Champion Dewatering screen is capa...

  • Effluent Screen Separation Of Solids
    Effluent Screen Separation Of Solids
    Nuclear Power - CHAMPION SCREENS MANUFACTURING COMPANY - India - March 23, 2013 - contact company for price

    Champion Screens offer Effluent Screening Systems. We utilize a cylindrical drum constructed of wedge wire screen to remove solid materials from waste streams at capacities from 200 to 4, 650 gal/min. (757 to 17, 600 liter/min.). Effluent discharges ...

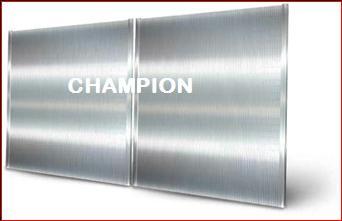

  • Champion Fish Diversion Screens
