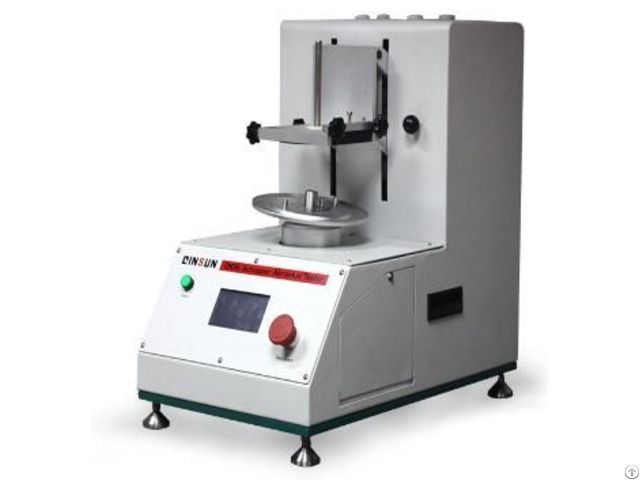

Product Name Schopper Abrasion Tester - China

Product name: Schopper Abrasion Tester Standards compliant:

DIN 53863 part 2 "Abrasion test of textile surfaces (rotational wear test)", GME Standard 60345, GMW Standard 3283, VW/Audi Zentral-Norm PV 3908 Scope of application:

The rotary abrasion test is used to test the abrasion resistance of fabrics, which is mostly used in the testing of automotive interior materials.

product details:

For fabrics, abrasion resistance is an important indicator to measure its performance and durability.

During the test, friction is applied to the rotating sample in the tangential direction through the friction member, and the wear resistance of the sample is measured.

The Schober Abrasion Tester can be used to test the appearance change of the specimen after friction or wear test.

product structure:

The instrument is compact and robust in design and consists of a clamping device for an obtuse cone collet, a loading table to hold the friction head, and a control and drive unit.

All parts are well designed and easy to operate.

For easy preparation and light clamping of the specimen, the instrument is equipped with an adjustable scale ring wrench to test the expansion height.

During the test, the sample is placed on the plane of the friction head, and a rotating motion is applied for friction, and the friction area of ​​the sample is about 50 cm.

Instructions:

The operating menu is displayed on a touch screen, and manual or automatic control can be selected.

After every 100 friction cycles, the instrument automatically stops to allow the operator to change the direction of rotation.

technical parameter:

1 - Rotation speed: 75rpm;

2 - The cone angle is 166°;

3 - The tilt angle of the test head bracket is 7°;

4 - Sample size: 100cm2;

5 - Test area: 50cm2;

6 - The arch height of the sample is adjustable, equipped with measuring accessories, the range is 0 ~ 10mm;

7 - Sample down pressure: adjustable from 0.5N to 25N, 8 - A set of load weights: 50g, 100g, 250g, 500g, 1000g, 1500g;

9 - Dimensions: 325×565×560mm;

10 - Weight: 35kg;

11 - Power supply: 115/240V, 50/60Hz;

12 - Power: 130W.

PS: (WLJCDM809)
