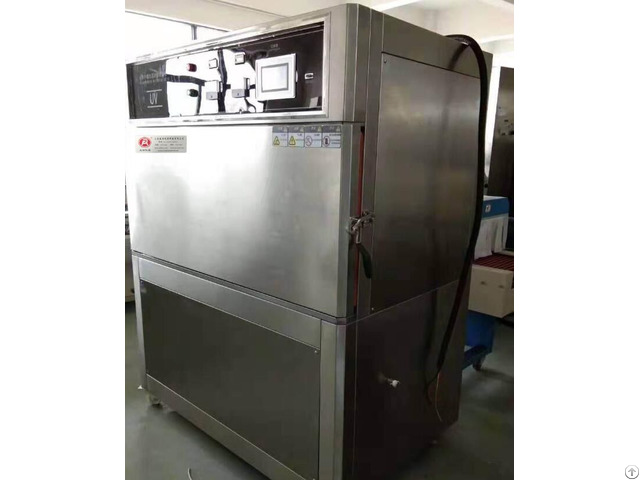

Fr 1205 Uv Aging Test Chamber - China

FR-1205 UV flat lay UV aging test chamber FR-1205 UV flat lay UV aging test chamber uses fluorescent UV lamps that can simulate the UV spectrum in sunlight, and combines temperature control, humidity supply and other devices to simulate the discoloration, brightness, intensity drop; cracking, peeling, Sunlight (UV segment) high temperature, high humidity, condensation, dark cycle and other factors that are damaged by pulverization, oxidation, etc.

At the same time, through the synergistic effect between ultraviolet light and moisture, the single-light resistance or single-humidity resistance of the material is weakened or It is widely used in the evaluation of the weather resistance of materials.

The equipment has the best sunlight UV simulation, low maintenance costs, easy to use, and the equipment uses a program controller to automatically run the test cycle, with a high degree of automation and good light stability.

The test results have high reproducibility.

UV weather resistance test box FR-1205UV flat-type UV aging test box This product adopts fluorescent UV lamps that can simulate the UV spectrum of sunlight in 7j, and combines temperature control, humidity supply and other devices to simulate the discoloration, brightness and intensity of materials.

Decreased; cracking, peeling, pulverization, oxidation and other damage to sunlight (UV segment) factors such as high temperature, high humidity, condensation, dark cycle, etc.

At the same time, through the synergistic effect between ultraviolet light and moisture, the material has a single light resistance or a single light resistance.

The moisture resistance is weakened or fails, so it is widely used in the evaluation of the weather resistance of materials.

The equipment has the best sunlight UV simulation, low maintenance costs, and easy to use.

Good stability and high reproducibility of test results.

Application:

(1) QUV is the most widely used weathering tester in the world

(2) Has become the world standard of laboratory accelerated weathering test: in line with ISO, ASTM, DIN, JIS, SAE, BS, ANSI, GM, U.S. GOVT and other standards and national standards.

(3) Quickly and faithfully reproduce the damage of sunlight, rain, and dew to materials; in just a few days or weeks, QUV can reproduce the damage that takes months or years outdoors: including fading, discoloration, brightness drop, Chalking, cracking, blurring, embrittlement, strength loss and oxidation.

(4) The reliable aging test data of QUV can make accurate correlation predictions on the weather resistance (anti-aging) of products, and help the screening and optimization of materials and formulations.

(5) Wide range of application industries, such as: coatings, inks, paints, resins, plastics, printing and packaging, adhesives, automobiles

Motorcycle industry, cosmetics, metal, electronics, electroplating, medicine, etc.

Meets G test standards: ASTM D4329, D499, D4587, D5208, G154, G53; 1SO 4892-3, ISO11507; EN 534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020 D4587 and all current UV aging test standards.

Structural material:

1 - Test box space: 1170×710×500mm2, Approximate size: 1340×870×1690mm3, Unit material: 304 stainless steel inside and outside

4 - Specimen rack: aluminum alloy frame base frame viewing board

5 - Controller: TIMI880 (full touch screen programmable controller)

6 - Power leakage circuit breaker control circuit overload short circuit alarm, over temperature alarm, water shortage protection PS: (WLJCDM809-W)
