Ul94 Horizontal And Vertical Combustible Chamber - China

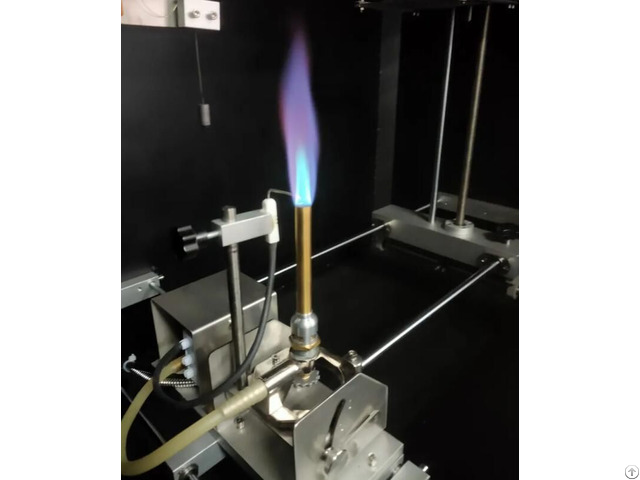

UL94 Horizontal and Vertical Combustible Chamber The UL94 horizontal and vertical combustible chamber is suitable for testing and evaluating the combustion and flammability test characteristics of plastic materials.

It is designed according to the American UL94 standard and can be used for horizontal and vertical flammability tests.

It is equipped with a gas flowmeter to adjust the flame size.

It is driven by a motor and can be used for simple and safe operation.

This instrument can be used to evaluate the flammability of materials such as V - 0, v-1, v-2, hepatitis B, 5V, high-frequency - 1, high-frequency - 2, HBF Test standard for horizontal and vertical combustible chamber Fire test UL94 GBT2408-2008: Determination of Plastic Burning Behavior and Vertical Method IEC 6065-11-10 Fire Test Technical parameters of horizontal and vertical combustible chamber: Content: ≥ 0.5m3, glass observation door Timer: The imported timer can be adjusted for 0-99 minutes within the following range, with a positive and negative accuracy of 0.1 seconds The burning time can be set and the burning duration can be recorded Release time, remaining flame time, afterburner time: 0~99 minutes 99 seconds can be set Test gas: more than 98% methane/37MJ/m3 natural gas (gas is also available) Combustion angle: 20 °, 45 °, 90 ° (0 °) adjustable The size parameters of the burner are: the inlet lamp itself, the nozzle Ø 9.5 ± 0.3 mm, the effective length of the inner diameter nozzle to 100 ± 10 mm, with air conditioning Flame height: standard requirements can be adjusted from 20mm to 175mm Flow meter: 105ml/min standard Product features: other configurations include lighting equipment, waste gas device, gas flow regulating valve, barometer, gas pressure regulating valve, gas flowmeter, gas U-shaped pressure gauge and sample fixing device Power supply: AC 220V, 50Hz (11-8)

ps: (WLJCDM809)
