Kcs400 30 Air Blast Sprayer Fog Gun - China

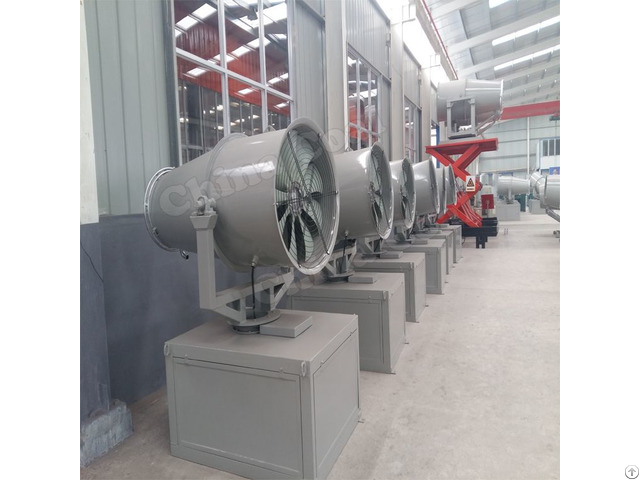

KCS400-30 Air Blast Sprayer Fog Gun

Main Features

1)With high efficiency, high spraying speed, wide coverage and long range, precise spraying can be realized;

2)For dust prone yard when spraying dust, tiny spray of mist, damp fog and dust float contact, capable of rapidly inhibiting and settling dust;

3)Matching power flexible, can be used in three-phase 380V power, can also supply diesel generator sets;

4)The utility model can be fixed on the platform of the concrete building, can also be supplied with diesel generator sets and installed on transport vehicles.

5)Safe to use and flexible to operate, remote control and manual control operation, optional control, adjust the level and rotating spray angle;

6)Water mist covering dust area is much larger than other dust suppression sprinkler equipment;

7)The water consumption is saved by 60% to 80% compared with other dust control equipment(Spray gun, sprinkler locomotive) Technical parameter Model KCS400-30

Horizontal range (m) 30

Fan power 2.2kw

Power three phase

Horizontal rotor ±180°

Pitch Angle -10°～80

Coverage area (㎡) 2000

Consumption (L/min)(adjustable) 7～20

Fluid pump pressure(MPa) 1.5-3

Fog size(μm)(adjustable) 30～200

Type of equipment Standards/strengthening

Control method Remote control/automatic/ remote

Levels of protection ≤IP55

Power plant(optional) Diesel generating set choose

Aggregate capacity 5.5KW

Ambient temp 0℃～+45℃ Scope of application

1)City environmental governance, reduce haze of dust pollution, the city of PM2.5 exceed the standard air governance, open coal mining, coal logistics park, coal yard, coal storage bunker or full closed coal storage sites, road and air blasting dust pollution;

2)Coal transport station, yard dust control, all coal pile, pile material, ash piles, open yard handling spray dust, spray or a spray dust suppression stabilizer;

3)Construction sites, demolition and other construction projects, municipal infrastructure, construction waste, waste residue, waste handling and piling up and other dust pollution activities such as dust control;

4)Material transport, such as transport of coal tar, gravel, earthworks, garbage, sediment and other vehicles prone to dust pollution of materials and heavy vehicles, in the transportation process, because of material leakage or leakage, resulting in dust pollution control;

5)Naked surface dust, the implementation of greening projects, effective green spraying dust reduction measures;

6)Coal terminal, coastal port stacker, bucket wheel operation, ore dust, bulk powder handling, shipping, transshipment, river regulation and other dust pollution control, and port environmental governance;

7)Airports, highways, stations, docks, sports sites, hot sites, such as dust, moisture, cooling, disinfection, public places and landfills, such as spraying, disinfection.
