Aluminized Silica Heat Shield Barrier - China

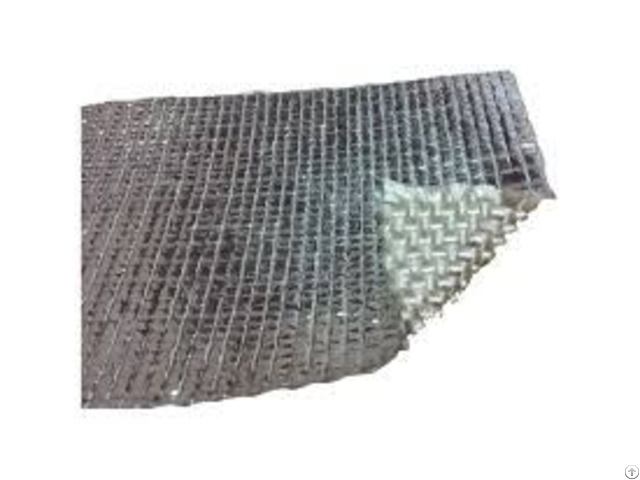

This Aluminized Silica Heat Shield Barrier is made from woven silica and aluminum mylar finish.

This shield is capable of reflecting 90% of radiant heat.

Face the aluminized side toward the source of radiant heat to shield heat away.

Feature Aluminized radiant heat barrier can withstand up to 2000 degrees F of radiant heat and can withstand direct contact up to 1200 degrees F.

Application Use heat barrier on Firewall, floor pan, under cab (above: muffler, catalytic convertor, DPF, exhaust system), fuel cel.

Specifications Datasheet

Material Aluminum, silica

Continuous Temperature 2000 °F

Melt Temperature 3000 °F

Standard Thickness 0.75mm

Thickness 0.75mm, 1.3mm

Length MAX 50 meter/roll

Color Silver

Cutting Tool Scissor Part Number Description

281212 12 in × 12 in

281224 12 in × 24 in

281280 12 in × 50 in

281818 18 in × 18 in

282424 24 in × 24 in

282448 24 in × 48 in

282640 26 in × 40 in

283658 36 in × 58 in

284036 40 in × 36 in

284050 40 in × 50 in

284046M 40 in × 164 ft Notes: Special size and color upon request.
