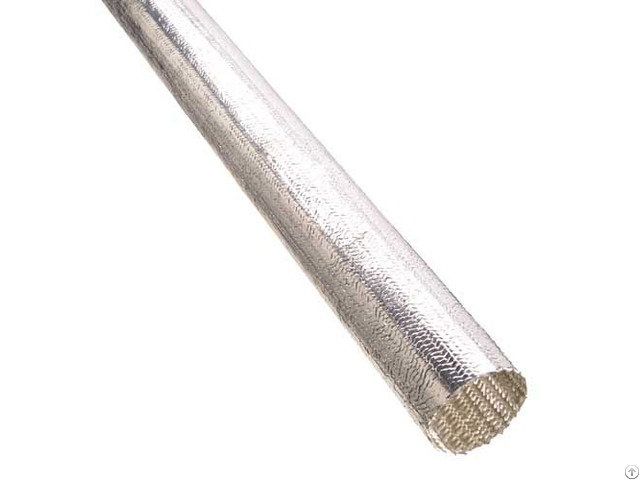

Aluminum Coated Fiberglass Heat Reflective Sleeve - China

ALFS aluminum coated fiberglass heat reflective sleeve is a aluminum coated braided fiberglass heat reflective sleeve and reflects more then 95% radiant heat.

It is easily to install due to the smooth inner fiberglass surface.

Aluminum Coated Fiberglass Heat Reflective Sleeve Features This high temperature, heat resistant and radiant heat reflective sleeve can be used to protect industrial wires, cables, hoses (hydraulics), piping and tubing from radiant heat sources such as glowing steel slab, liquid metal pour stream, infrared heaters and other similar sources.

Aluminum Coated Fiberglass Heat Reflective Sleeve Application It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.

Aluminum Coated Fiberglass Heat Reflective Sleeve Specifications DATASHEET

Part Number Normal Inside diameter Meter for Length

Inches mm Dash # Meter

ALFS-13 1/2 13 -8 20

ALFS-16 5/8 16 -10 20

ALFS-19 3/4 19 -12 20

ALFS-22 7/8 22 -14 20

ALFS-25 1 25 -16 20

ALFS-29 1 1/8 29 -18 20

ALFS-32 1 1/4 32 -20 20

ALFS-35 1 3/8 35 -22 20

ALFS-38 1 1/2 38 -24 20

ALFS-41 1 5/8 41 -26 20

ALFS-44 1 3/4 44 -28 20

ALFS-48 1 7/8 48 -30 20

ALFS-51 2 51 -32 20

ALFS-57 2 1/4 57 36 20

ALFS-60 2 2/5 60 -38 20

ALFS-64 2 1/2 64 -40 20

ALFS-67 2 5/8 67 -42 20

ALFS-70 2 3/4 70 -44 20

ALFS-73 2 7/8 73 -46 20

ALFS-76 3 76 -48 20

ALFS-83 3 1/4 83 -52 20

ALFS-89 3 1/2 89 -56 20

ALFS-95 3 3/4 95 -60 20

ALFS-102 4 102 -64 20

ALFS-114 4 1/2 114 -72 20

ALFS-121 4 3/4 121 -76 20

ALFS-127 5 127 -80 20

ALFS-133 5 1/4 133 -84 20

ALFS-140 5 1/2 140 -88 20

ALFS-146 5 3/4 146 -92 20

ALFS-152 6 152 -96 20 Technical Datasheet

Material Aluminum, fiberglass

Working temperature -40℃ - +260℃

Flammability VW-1

Melting point +537℃

Standard Color Silver

Standard Thickness 1-2 mm

MOQ 100 meter each size

Cutting tool Scissors Notes:

Special thickness upon request

Special length or packing upon request.

Special size upon request.
