Forward Fw 361 Mid Frame Removal Separator Machine - China
price: 55.00 Dollar US$
Description

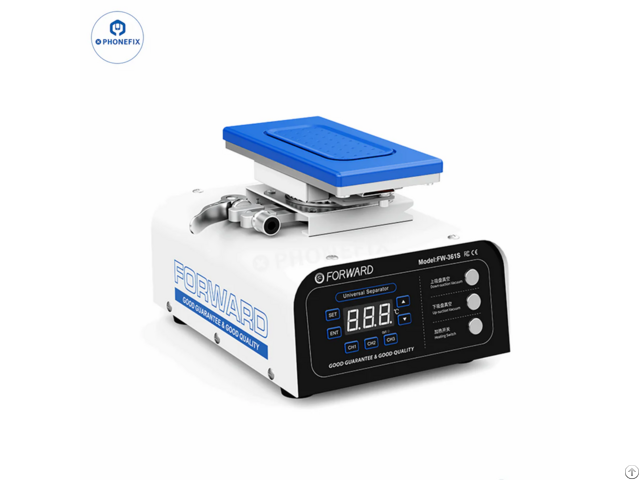

FORWARD FW-361S 3-in-1 mid-frame removal and FW-361Max 7-in-1 middle frame removal LCD screen vacuum heating separator for mobile phone repair.
FORWARD FW-361S FW-361Max frame removal screen rotary separator for Phone curved/flat screens replacement, back glass removal, glue removal, etc.
FW-361S Features:
1 - Suction function: FW-361S is equipped with strong suction, which can firmly adsorb the screen and ensure stability during the separation process.
2 - Heating system: Through heating, the device can soften the screen glue, reduce the difficulty of separation, and improve the separation efficiency.
3 - Rotation function: The rotation function makes the operation more flexible, and users can adjust the device angle as needed for easy operation.
FW-361Max Features:
1 - FW-361Max 7 In 1 Mid-Frame Removal & Separator, available for mobile phone LCD screen heating, glue removal, glue scrape, glass separating, separating glass in-frame, separating the mid-frame and separating back glass.
2 - Up-suction vacuum design makes the removal of the middle frame easy and efficient;
3 - The screen is up, the separation process in the middle frame is clear and intuitive, so as to avoid the glass slag scratching the liquid crystal.
4 - The suction of the vacuum pump is stable and continuous, which makes the separation process not easy to leak, and is safe and friendly to the screen.
5 - Adsorption time and switch state can be set, vacuum can be broken automatically after the end of vacuum.
6 - The silicone tube equipped with the vacuum pump is resistant to aging.
7 - The shape of the vacuum sucker is a rectangle with the same proportion of the mobile phone screen, which is developed by the independent mold and can make the mobile phone screen evenly stressed, and even if the screen is broken, it is not easy to be broken during separation.
8 - And the vacuum sucker is made of silicone material, which is not easy to harden and has long life service.
9 - Heating table, available for 370°rotation + 60°right and left swing, easy to separate mid-frame.
10 - Suction cup design, firmly adsorbs the whole screen, ultra-thin, good thermal conductivity.
Cover the sides of the separation panel, anti-scalding, perfect adsorption.
FW-361Max Parameters:
Model: FORWARD FW-361Max 7 In 1 Mid 1-Frame Removal & Separator.
Power: 450W
Voltage: 110-220V.
Product Weight: 2.6KG
Package Weight: 3.7KG
Product Size: 255*160*265mm
Package Size: 210*290*240mm FW-361S Package Lists:
Manual x1
Blue Mat x2
Power Cord x1
5x8 Screw x4
